Supplier : AIRSUSTECH
Product Number : 3H7823
Compressed Height : 4.6 Inches
Cover Plate Diameter : 17.75 Inches
High Quality : 100% Tested
Firestone Bellows No. : W01-358-7921
Warranty : One Year
Production Process : Vulcanization
Product Detailed Datas
Cover Plate
Top Cover Plate Diameter: 17.75 inches
Screw Center Distance of Top Cover Plate: 16.50 inches
Bottom Cover Plate Diameter: 17.75 inches
Screw Center Distance of Bottom Cover Plate: 16.50 inches
Nut/Blind Nuts
Top Cover Plate Screw(Nut) Tooth: 24 (3/8-24) bolts
Bottom Cover Plate Screw(Nut) Tooth: 24 (3/8-24) bolts
Rubber Bellow
Rubber Bellow Max. Diameter: 20.50 inches
Minimum Height: 4.60 inches
Maximum Height: 18 inches
Product Technical Data Sheets
Dynamic Characteristics at 13.0 in. Design Height | ||||
Volume @ 100 PSIG = 3,073 in3 | Natrual Frequency | |||
Gage Pressure (PSIG) | Load (Ibs.) | Spring Rate (Ibs./in.) | CPM | HZ |
40 | 8,010 | 1,744 | 88 | 1.46 |
60 | 12,030 | 2,104 | 78 | 1.31 |
80 | 16,270 | 2,784 | 78 | 1.30 |
100 | 20,580 | 3,624 | 79 | 1.31 |
Force Table | ||||||
Assembly Height (in.) | Volume @ 100 PSIG (in3) | @ 20 PSIG | @ 40 PSIG | @ 60 PSIG | @ 80 PSIG | @ 100 PSIG |
15.0 | 3,470 | 3,220 | 6,640 | 10,280 | 13,960 | 17,740 |
13.0 | 3,073 | 3,960 | 8,010 | 12,030 | 16,270 | 20,580 |
11.0 | 2,632 | 4,330 | 8,910 | 13,420 | 18,030 | 22,770 |
9.0 | 2,150 | 4,740 | 9,610 | 14,450 | 19,410 | 24,420 |
7.0 | 1,639 | 5,030 | 10,120 | 15,410 | 20,770 | 26,200 |
5.0 | 1,093 | 5,610 | 11,140 | 16,590 | 22,380 | 28,170 |
OEM Cross Reference
Description | Assembly Order No. | |
Style 323 Two Ply Bellows | Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers | W01-358-7823, W013587823, W01 358 7823 WO1-358-7823, WO13587823, WO1 358 7823 |
Rolled plate assembly, 1/2 blind nuts, 3/4 NPT | W01-358-7274, W013587274, W01 358 7274 WO1-358-7274, WO13587274, WO1 358 7274 | |
Rubber bellows only | W01-358-7921, W013587921, W01 358 7921 WO1-358-7921, WO13587921, WO1 358 7921 | |
Style 324 High Strength Bellows | Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers | W01-358-7829, W013587829, W01 358 7829 WO1-358-7829, WO13587829, WO1 358 7829 |
Rubber bellows only | W01-358-0324, W013580324, W01 358 0324 WO1-358-0324, WO13580324, WO1 358 0324 |
AIRSUSTECH Air Bags Product Technical Support
The Related Pictures
FAQ
Q: Can you print my logo on inner box and outer box?
A: Yes. We can do it, but it has MOQ.
Q: What is your advantage?
A: (1) High quality - Natural rubber.
(2) Fast delivery - Stock sales.
(3) Best service - 24 hours online.
Q: What's your advantage?
A: (1) Resonable price, good service
(2) Reliable quality, long working life
(3) Quick and safe modes of payment
(4) Ships items timely and quickly
(5) Our products are exported to most countries in the world
Q: How do you guarantee quality?
A: We have testing on aging, hardness, bending, tension, viscosity, rheology, water inspection, bursting, fatigue, etc.
![]() |

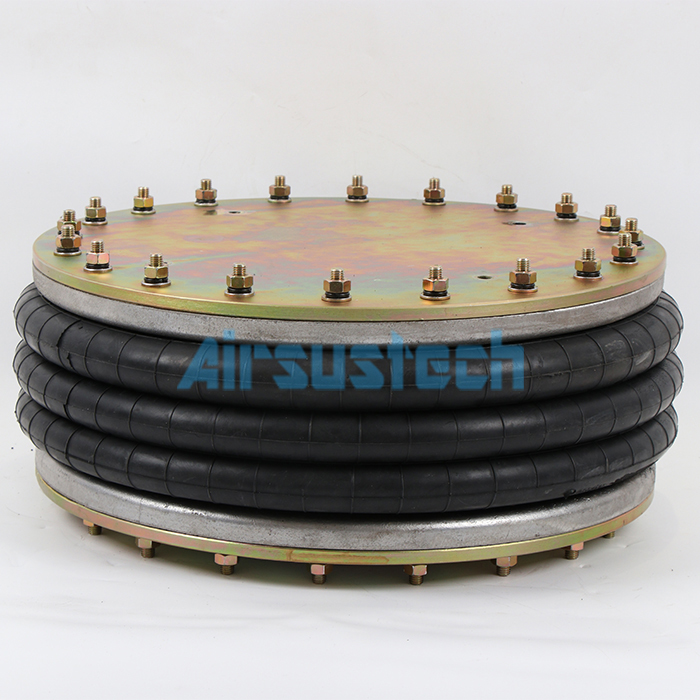

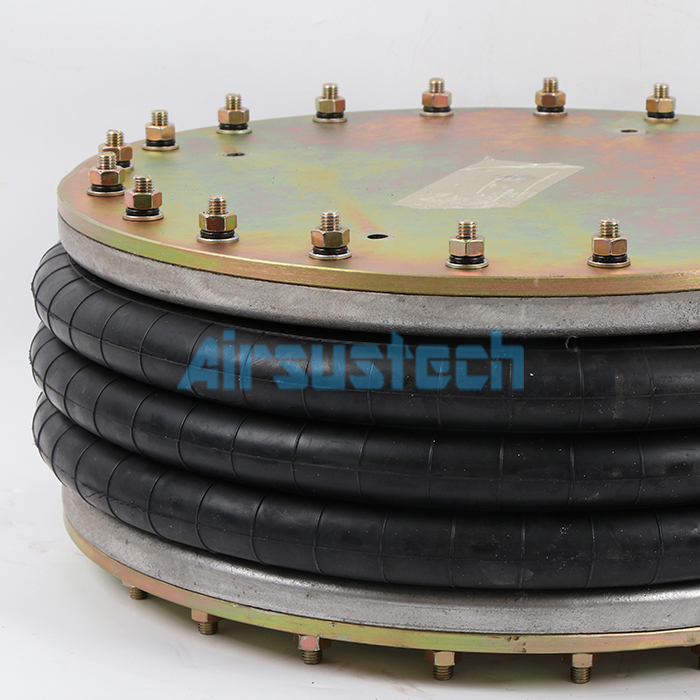

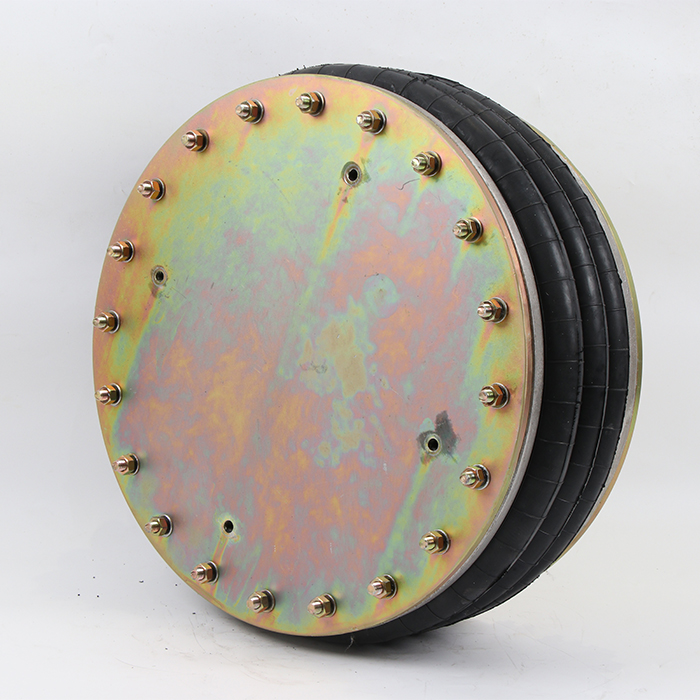

Firstone Pneumatic Actuator W01-358-7823 Single Rubber Bellow with Aluminum Plate Images |
