265 MM Full Stroke Continental Convoluted Rubber Bellow FT 210-32 DS Air Spring Dunlop 10''×3

Name: 265 MM Full Stroke Continental Convoluted Rubber Bellow FT 21032 DS Air Spring Dunlop 103
Brand: AIRSUSTECH
Price: 1 USD

265 MM Full Stroke Continental Convoluted Rubber Bellow FT 210-32 DS Air Spring Dunlop 10''×3 Manufactures

Brand Name : AIRSUSTECH

Model Number : 3B10×3T

Certification : ISO/TS16949, ISO9001

Place of Origin : Guangzhou, China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal or Others

Supply Ability : 5000PCS/Week

Delivery Time : 5-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Trademark : AIRSUSTECH

Refer Number : 3B10×3T

Maximum Height : 365 MM

Cross Number : M/31103

Housing Material : Steel Galvanized

Full Stroke : 265 MM

Production Process : Burst Resistance

Condition : Brand New

Contact Now

Continental Convoluted Rubber Bellow FT 210-32 DS Air Spring Dunlop 10''×3

Product Technical Data

Type	Max. Diameter	Minimum Height (mm)	Maximum Height (mm)	Total Stroke	Static Height (mm)	C to C Diameter	Space Required
41/2×3	125	100	200	100	145	93	140
6×3	168	105	225	150	180	127	180
10×3	280	100	365	265	235	181	295
12×3	330	100	430	330	222	232	345
141/2×3	395	100	476	376	280	283	410
16×3	430	125	500	375	280	283	445

Part Interchanges

Contitech Air Spring

FT 210-32 DS / FT210-32 DS / FT21032 DS

Dunlop Springride Air Spring

SP1539 / SP 1539

Firestone Air Spring

W01-R58-4059 / W01 R58 4059 / W01R584059

Dunlop Pneuride Air Spring

10''×3 / 10'×3 / 10×3

Norgren Air Spring

M/31103 / M31103 / M 31103

Parker Air Spring

9109031

Air Spring Precautions

1) Airsprings must not be pressurised unless they are restricted by an outside frame or by a suitable load.

2) Strokes must be limited by the direct use of bump stops or external stops. When stacking airsprings, special cares must be taken to ensure the airsprings are guided and fixed

3) An Airspring is a single acting air actuator and must not be used below atmospheric pressure.

4) Please check the overpressure in case of quick compression.

We Have Other Flang Air Shock Springs

Firestone	Dunlop Pneuride	Dunlop Springride	Contitech	Norgren	Parker
	2 3/4''×3	SP2910	FT 22-6 DI		9109010
W01R584035	4 1/2''×3	SP2895	FT 44-15 DI	PM/31043	9109402

	6''×3(Al)	SP2923	FT 76-20 DS	PM/31063	9109007A
W01R584095	6''×3(Steel)	SP2861	FT 138-26 DS	M/31063	9109007
W01R584056	8''×3	SP2863	FT 138-26 DS	M/31083	9109017
W01R584059	10''×3	SP1539	FT 210-32 DS	M/31103	9109031
W01R584062	12''×3	SP1542	FT 412-32 DS	M/31123	9109051
W01R584065	14 1/2''×3	SP1558	FT 614-36 DS	M/31143	9109069
W01R584068	16''×3	SP2141	FT 816-40 DS	M/31163	9109177

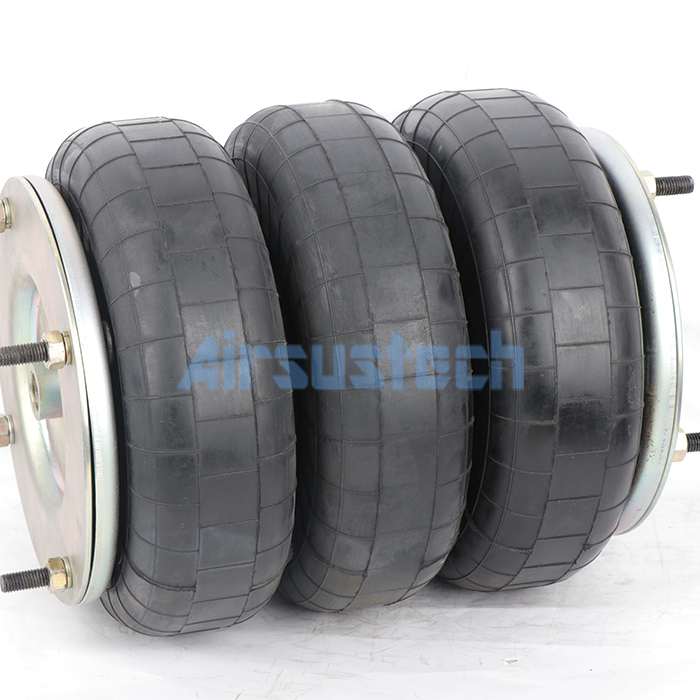

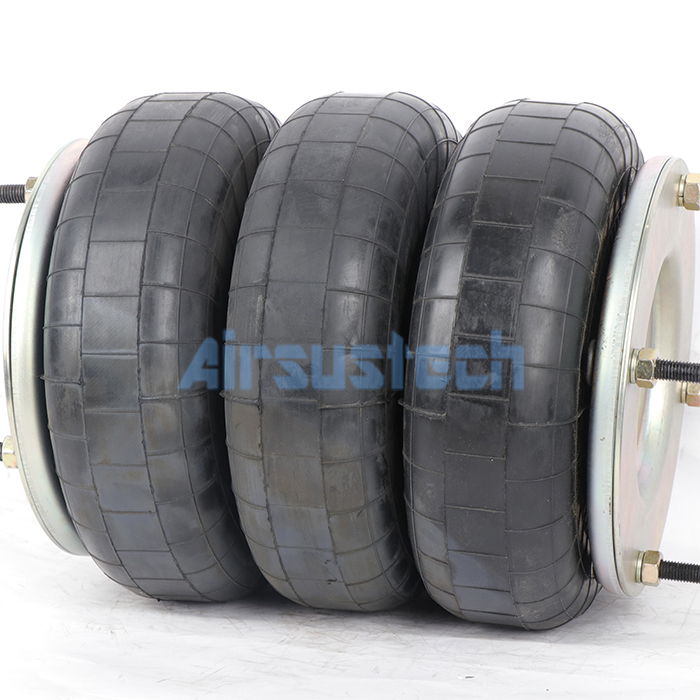

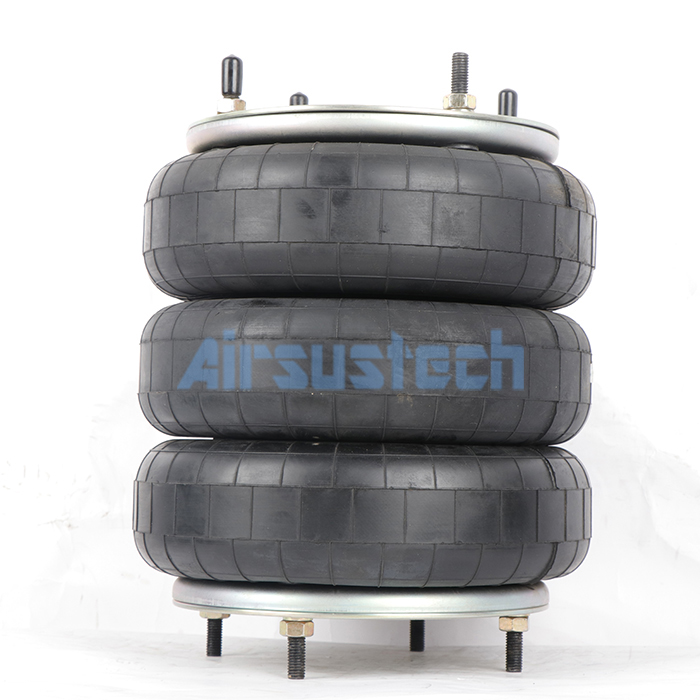

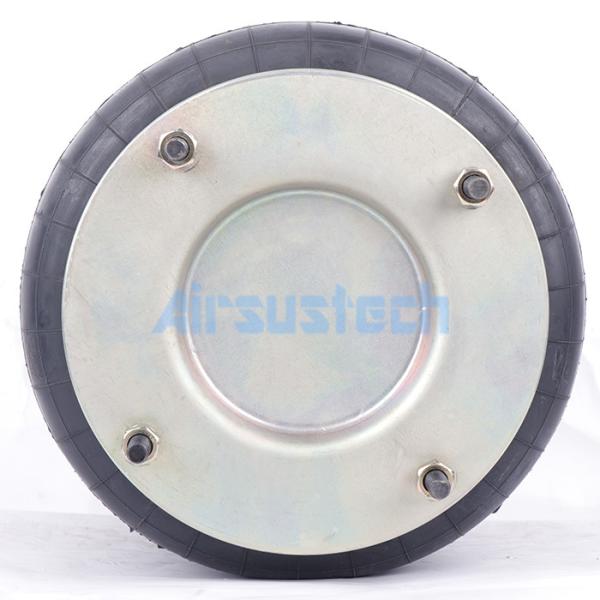

3B10×3T Air Spring Detailed Photos

265 MM Full Stroke Continental Convoluted Rubber Bellow FT 210-32 DS Air Spring Dunlop 10''×3

Product Tags:

Continental Convoluted Rubber Bellow Air Spring

265 MM Full Stroke Air Spring

265 MM Full Stroke Continental Convoluted Rubber Bellow FT 210-32 DS Air Spring Dunlop 10''×3 Images
