Convoluted Rubber Air Spring Airtech 140293 G3/4 Pneumatic Connection Air Bag

Guangzhou Guomat Air Spring Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Convoluted Rubber Air Spring Airtech 140293 G3/4 Pneumatic Connection Air Bag

Brand Name : AIRSUSTECH

Model Number : 1B1209

Certification : ISO/TS16949:2009

Place of Origin : Guangzhou,China

MOQ : 1

Price : USD59.9-79.9/PC

Payment Terms : T/T, Western Union, Paypal or Others

Supply Ability : 1000PCS/Week

Delivery Time : 5-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Manufacturer : AIRSUSTECH

Product Number : 1B1209

Working Stroke : 65 MM

Cover Plate Diameter : 135 MM

Festo : EB-215-80

Contitech : FS 120-9

Function : Effective Shock

Max. Diameter : 215 MM

Contact Now

Convoluted Rubber Air Spring Airtech 140293 G3/4 Pneumatic Connection Air Bag

Product Information

Air springs are used for efficient vibration and structure-borne sound insulation in many types of machines, optical and electronic devices, laser systems as well as in vehicle, engine and transmission test benches. AIRSUSTECH's low-frequency air springs offer highly effective vibration isolation and can be used in conjunction with a wide range of mechanical and electronic leveling systems. The damping level of the pneumatic and low-maintenance air spring can be adjusted as needed.

Product Detailed Data

Bottom Plate Alignment: Parallel
Bottom Plate Center To Center Diameter: 70 mm
Bottom Plate Diameter: 135 mm
Bottom Plate Hole Quantity: 2×M8×1.25
Bottom Plate Type: Steel
Top Plate Alignment: Parallel
Top Plate Center To Center Diameter: 70 mm
Top Plate Diameter: 135 mm
Top Plate Hole Quantity: 2×M8×1.25
Top Plate Type: Steel
Expanded Height: 115 mm
Compressed Height: 50 mm
Spring Type: single convoluted
Max Rubber Bellow Diameter: 215 mm
Air Connection: G3/4
Operation: Gas-filled

1B1209 Air Bellows Replaces These Air Bags

Airtech Air Spring: 140293

Firestone Air Spring: W01-M58-6165

Firestone Air Spring: W01M586165

Firestone Air Spring: W01 M58 6165

Firestone Air Spring: WO1-M58-6165

Firestone Air Spring: WO1M586165

Firestone Air Spring: WO1 M58 6165

Contitech Air Spring: FS 120-9

Contitech Air Spring: FS 1209

Contitech Air Spring: FS 120 9

Contitech Air Spring: FS120-9

Contitech Air Spring: FS1209

Contitech Air Spring: FS120 9
Dunlop Air Spring: 8''x1 S08101
Bosch Air Spring: 822419003
Festo Air Spring: EB-215-80

Festo Air Spring: EB21580

Festo Air Spring: EB 215 80
Norgren Air Spring: PM/31081(8x1)

Norgren Air Spring: PM31081(8x1)

Norgren Air Spring: PM 31081(8x1)
Weforma Air Spring: WBE 300-E1

Weforma Air Spring: WBE 300 E1

Weforma Air Spring: WBE 300E1
Airtech Air Spring: 111003/1B-190FB
Megatech Air Spring: 1S120-9 3/4 M8

What is Dynamic Load Adjustment in Pneumatic Controls?

Another unique feature of air spring isolation is its ability to maintain consistent performance under varying loads. In conventional systems, added weight increases stiffness and natural frequency, reducing vibration isolation performance. Air springs overcome this problem by regulating air pressure. An external valve system compensates for load fluctuations and maintains constant design height and stiffness. This makes them ideal for conveyor lines, platforms, and modular machines. As the load increases, the internal pressure rises, restoring vibration isolation performance. This dynamic control ensures consistent performance even during load changes, tool changes, or component replacement. This feature eliminates the need for recalibration or manual intervention during production changes.

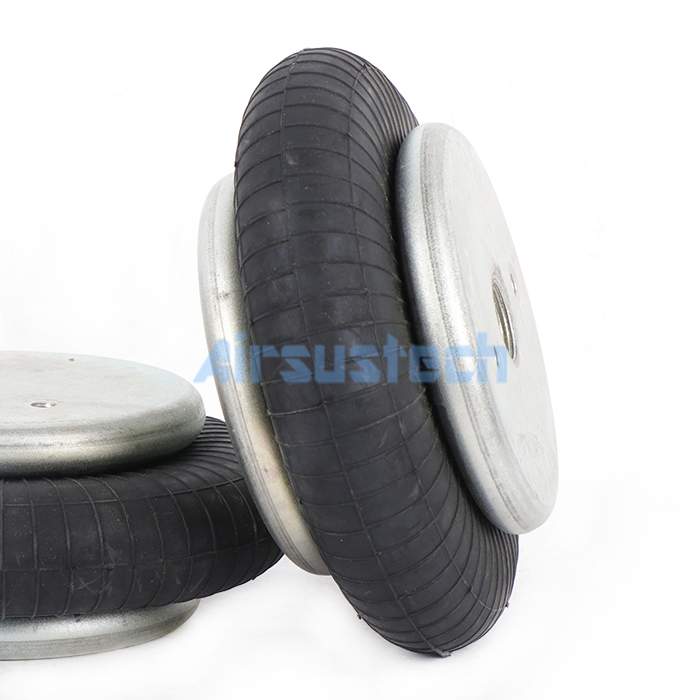

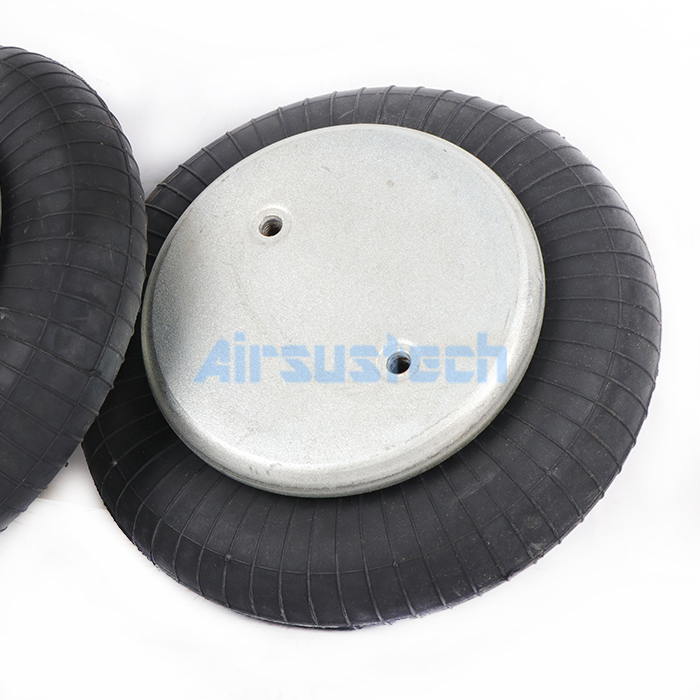

1B1209 Real Photos


Convoluted Rubber Air Spring Airtech 140293 G3/4 Pneumatic Connection Air BagConvoluted Rubber Air Spring Airtech 140293 G3/4 Pneumatic Connection Air Bag
