Natural Rubber 3H480312 Flange Connection Triple Convoluted Rubber Air Spring

Brand Name : AIRSUSTECH

Model Number : 3H480312

Certification : ISO/TS16949:2009

Place of Origin : Guangzhou,China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal or Others

Supply Ability : 1000PCS/Week

Delivery Time : 5-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Maximum Height : 378 MM

Minimum Height : 122 MM

Screw Type : M10

Function : Shock Absorber

Condition : Brand New

Warranty Special : One Year

Contact Now

Natural Rubber 3H480312 Flange Connection Triple Convoluted Rubber Air Spring

Product Introduction

Due to its low quality, good comfort and fatigue resistance, the rubber air spring has the advantages of long service life, vibration reduction and noise reduction. Widely used in industrial machinery, instrumentation and other equipment. Manufactured from fabric reinforced synthetic rubber in one, two or three convolutions according to stroke and model. They incorporate no reciprocating metal parts and so provide virtually frictionless thrust compared with conventional pneumatic cylinders.

Product Detailed Data

Diameter of the Top Cover Plate: 476 mm
Center-to-Center Distance of Screws on the Top Cover Plate: 438 mm
Diameter of the Bottom Cover Plate: 476 mm
Center-to-Center Distance of Screws on the Bottom Cover Plate: 438 mm
Screw (Nut) Thread Count for the Top Cover Plate: 20×M10
Screw (Nut) Thread Count for the Bottom Cover Plate: 20×M10
Max Diameter of the Rubber Bellow: 510 mm
Design Height: 312 mm
Maximum Height: 378 mm
Minimum Height: 122 mm

How to Choose Air Shock Suspension?

1. Load Capacity
Select one or two AIRSUSTECH shock absorbers that can support the loads at each mounting point. Design pressures should preferably be in the range of 4 to 6 bar. Consider only 1M1A and single or double convolute models initially. Note that in most cases in the range of 1 to 250 kN, single or double convolute models will suffice.


2. Determine the damping effect.
Select the disturbance frequency that is closest to the actual force frequency: 7, 13 or 25 Hz. Then check the percentage of damping of the airbag and select one of these.


3. Determine the design height
The air spring should be used at a given design height. The design height of a double convolute airbag is higher than that of an equivalent single convolute airbag. Make sure the design height is within the height limit. In addition, the damping percentage of a double convolute airbag is higher than that of a single convolute airbag.


4. Determine the exact internal pressure and vibration reduction effect
Because the user's specific vibration isolation problem is not important within the load and interference frequency criteria specified in the selection guide, it is necessary to re-determine the required internal pressure and the percentage of vibration isolation to be achieved after the initial selection.

We Can Offer Other Triple Rubber Air Bags

Product Number Nonimal Diameter (mm)

0.7Mpa Max.Diameter

(mm)

Load at Design Height 0.7Mpa
Natural Frequency
Stroke Range
0.2Mpa 0.5MPa 0.7Mpa Min. Height Max. Height
3H200206 150 220 229 634 888 1.68 116 236
3H250260 185 270 507 1344 1924 1.7 116 299
3H255230 200 280 566 1460 2070 1.3 116 264
3H255322 200 290 116 400
3H310306 230 330 861 2239 3170 1.3 120 354
3H330306 250 355 1035 2730 3892 1.4 120 354
3H360306 280 380 1250 3220 4570 1.3 122 360
3H380316 300 405 1401 3672 5235 1.32 122 370
3H400312 320 430 1724 4436 6308 1.19 122 360
3H520312 400 550 3046 7932 11262 1.32 118 354
3H580306 500 600 3950 10181 14409 1.22 118 354
3H630376 530 660 4243 11045 15612 0.94 122 436
3H680376 580 710 5259 13620 19339 1.27 122 436

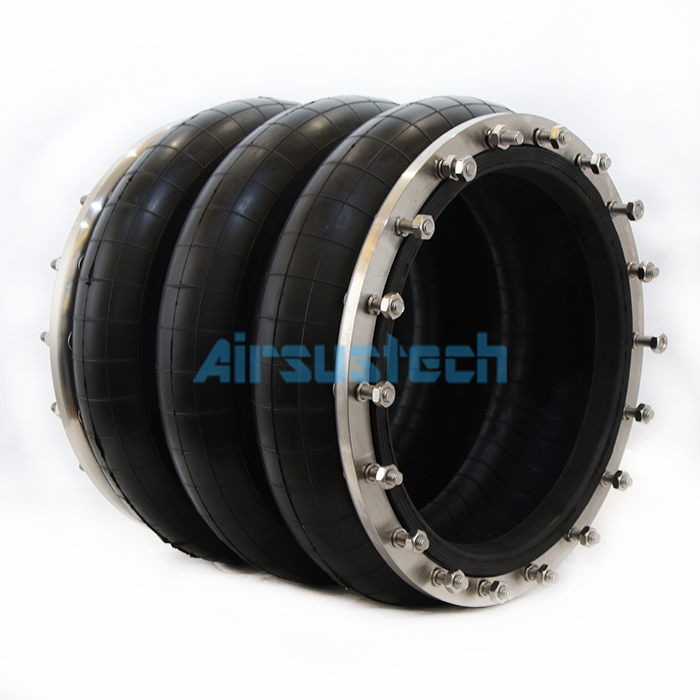

The Real Pictures
