Brand Name : AIRSUSTECH
Model Number : 2B 6330
Certification : ISO/TS16949:2009
Place of Origin : Guangzhou China
MOQ : 3Pieces
Payment Terms : T/T, Western Union, Paypal or Others
Supply Ability : 1000PCS/Week
Delivery Time : 5-8 Working Days
Packaging Details : Strong Carton Box or as Customers Requirement
Quality Assurance : 12 Months
Material : Rubber and mental
Air Inlet : 1/4 NPTF
Sample : Available
Cross Reference : Watson&Chalinl AS01541G/01881F
OEM : Welcome
Apply For : Wrapping machine, Pinch valve
Convolutions : Double Convoluted
Cover plate : 231mm
Max. OD : 325mm
Watson&Chalinl AS01541G/01881F Suspension Air Springs 325mm Max. OD Double Convoluted
Cross Reference
Airspring Supplier: Goodyear
Reference: 578923309; 578 92 3 309; 578-92-3-309
Competitor/Supplier Number: 2B12-425; 2B12 425; 2B12425; 2B12 311; 2B12 311; 2B12311
Airspring Supplier: Contitech
Competitor/Supplier Number: FD 33022363; FD 330-22 363; FD 330 22 363
Airspring Supplier: Triangle
Reference: 6316
Competitor/Supplier Number: 4363
Suspension Supplier: Kwiklok/Todco(Jifflox)
Airspring Supplier: Vibracoustic
Competitor/Supplier Number: VSP2B22R7180
Suspension Supplier: EI Ride
Competitor/Supplier Number: 8030190
Suspension Supplier: Hendrickson
Competitor/Supplier Number: 1VA1816
Suspension Supplier: Leland
Competitor/Supplier Number: SC2075
Suspension Supplier: Navistar
Competitor/Supplier Number: 1685179C1
Suspension Supplier: SAF Holland
Competitor/Supplier Number: 57007180
Suspension Supplier: Peerless
Competitor/Supplier Number: 0550 00001
Suspension Supplier: Ridewell
Competitor/Supplier Number: 1003587180C
Suspension Supplier :Watson&Chalinl
Competitor/Supplier Number: AS01541 G/01881F
Firestone Trimmed: W01-358-7180; W01 358 7180; W013587180; WO13587180; WO1 358 7180; WO1-358-7180; w01-358-7180; w01 358 7180; w03587180; FIRESTONE FLEX 22
The detailed Specifications and parameters | |
Blind Nut/Screw teeth | Air inlet/Air hole/Air fittings |
Screw teeth of the top plate: 2×3/8UNC | 1/4NPTF |
Screw teeth of the bottom plate: 2×3/8UNC | The distance between the screw center and the air inlet:73mm |
The screw center distance: 157mm | |
Cover plate | Height |
Top cover plate:231mm | Min. height: 81mm |
Bottom cover plate:231mm | Max. height: 305mm |
Rubber Max. OD: 325mm | |
Bumper block | Girdle ring/Girdle hoop/belt loop |
Without | one piece of belt loop/girdle hoop/girdle ring |
Appplications
Presses, air compressors, centrifuges, vibrating conveyors, control hammers, foundry machinery and textile machinery, optical and laser instruments, integrated circuits, Trampoline, carousel and other amusement equipment, vibrating screen, paper machine, wrapping machine, pinch valve, Military Product Lifting Tooling, Adhesives, Abrasives, ultra-precision machine tools and other precision mechanical equipment and precision testing equipment, etc.
Features
Bending strain as a function of load
Adjust the working pressure of the internal structure to obtain different bearing capacity
Bear the load in different directions
It has the advantages of frequency protection and sound insulation, and can automatically reduce the frequency.
Long service life and convenient operation
The reated picture of air springs/convoluted air spring/air bag/air balloon
![]() |

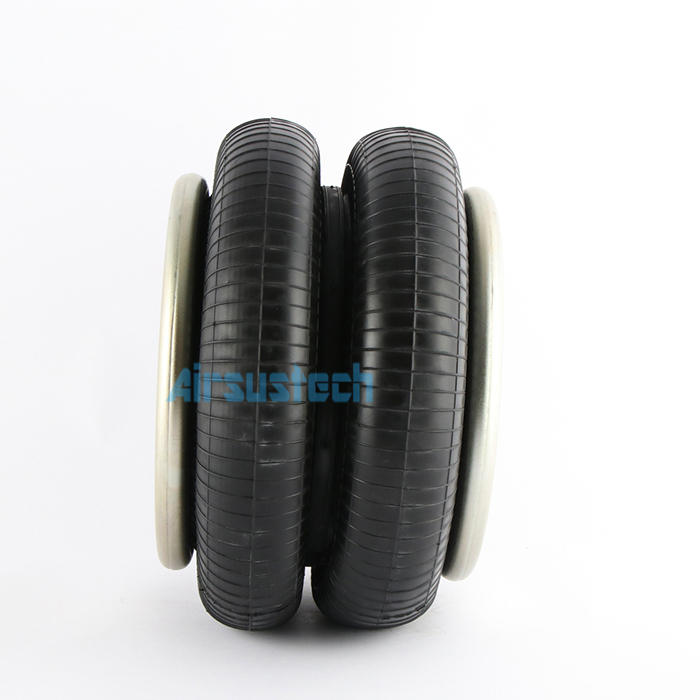

Watson Chalinl AS01541G/01881F Suspension Air Springs 325mm Max. OD Images |
