Product Description:
One of the main features of the Torpress air spring is its ability to withstand extreme temperatures. It is designed to operate in a temperature range of -35℃~+60℃, suitable for use in different environments and weather conditions.

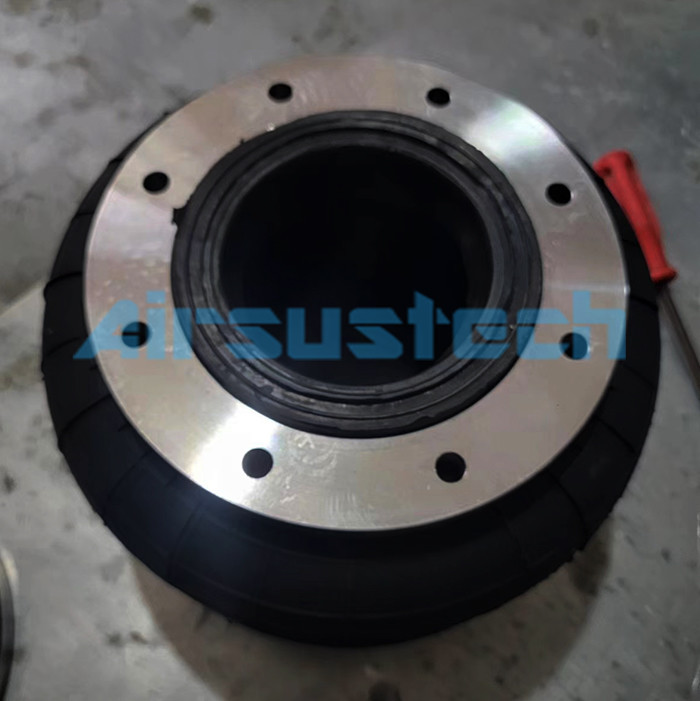

The Torpress air spring is cylindrical in shape and is connected via an F2 connection. It is also equipped with 8PCS M8X1 connection bolts or holes to ensure a safe and stable connection. These features make it easy to install and use, even for those who are not familiar with air springs.
| Torpress Pirelli Model | 20 |
| Torpress Pirelli Standard Code | 86600 |
| Torpress Pirelli Hightemp Code | 88538 |
Features:
- Product Name: Torpress Air Spring
- Oe No: PIRELLI 86600
- Endurance cycle: > 10
- Full stroke: 185 Mm
- Applications: Industrial Machine
- Type: Pneumatic
- Features:
- Pirelli Air Cushion Suspension
- Pirelli Air Shock
- Pirelli Rubber Air Spring
Technical Parameters:
Nut / Blind Nut
The top cover plate screw uses a nut with 8 teeth, at a size of M8X1. The screw center distance of the top cover plate is 160.3mm. The bottom cover plate screw also uses a nut with 8 teeth, at a size of M8X1. The screw center distance of the bottom cover plate is also 160.3mm.
Gas Hole / Air inlet / Air Fitting
There is no gas hole or air inlet available.
Cover Plate
The top cover plate has a diameter or width of 179mm. The bottom cover plate also has a diameter or width of 179mm.
Rubber Bellows
The maximum diameter of the rubber bellows is 255mm. The natural diameter of the rubber bellows is 224mm. The working stroke ranges from a maximum of 265mm to a minimum of 80mm. The compressed height is 80mm or 3.12 inches. The design height ranges from 178mm to 203mm or 7-8 inches. There are 20 bellows available, and there is no bumper block.
Girdle Hoop / Girdle Ring
One piece of girdle hoop is included.
Applications:
The Torpress air spring can be used in both the Pirelli Air Suspension System and the Pirelli Air Damping System, providing excellent suspension and damping capabilities. Its high-quality construction and design make it durable.
The Torpress air spring is versatile and can be used in a variety of industrial applications. It is commonly used in heavy machinery such as excavators, loaders, and cranes. It is also used in agricultural machinery such as tractors and harvesters. It provides reliable suspension and damping capabilities, making it suitable for vehicles carrying heavy loads, ensuring a smooth and safe ride.
Packing and Shipping:
Product Packaging:
- Air Spring
- Protective bubble wrap
- Product manual
Shipping:
- Shipping carrier: FedEx,UPS,DHL
- Estimated delivery time: 3-5 business days
- Tracking number: [insert tracking number here]
