100% Tested Air Shocks Festo EB-165-125 Pneumatic Air Spring Natural OD. 162MM

Brand Name : AIRSUSTECH

Model Number : 2B7070

Certification : ISO/TS16949:2009

Place of Origin : Guangzhou,China

MOQ : 5

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal or Others

Supply Ability : 1000PCS/Week

Delivery Time : 5-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Model NO. : 2B7070

Cross Number : Festo 36494

Operation : Gas-Filled

Bellows Type : Double Convoluted

Operating Temperature : -40℃+70℃

Total Stroke : 100 MM

Pressure Ability : 3-8 Bar

Contact Now

100% Tested Air Shocks Festo EB-165-125 Pneumatic Air Spring Natural OD. 162MM


Design Specifications

Diameter of the Top Cover Plate 145 mm

Center-to-Center Distance of Screws on the Top Cover Plate

 44.5 mm
Diameter of the Bottom Cover Plate 145 mm
Center-to-Center Distance of Screws on the Bottom Cover Plate 44.5 mm
Screw (Nut) Thread Count for the Top Cover Plate 1×M8×1.25
Screw (Nut) Thread Count for the Bottom Cover Plate 2×M8×1.25
Air Inlet G1/4
Rubber Bellow Natural Diameter 230 mm
Minimum Height 80 mm
Maximum Height 180 mm

Other OEM Number

Festo Part Number

36 491, 36494

Festo Part Number

EB-165-125, EB165125, EB 165 125

We Can Offer Other OEM Numbers

2B6-530 2B6-531 FD 40-10 CI SP2907
2B6-532 2B6-535 FD 70-13 CI SP2441
2B6-536 2B7-540 FD 110-15 CI SP2917
2B7-541 2B7-542 FD 120-17 CI SP1482
2B7-545 2B7-546 FD 120-20 CI SP1490
2B8-550 2B8-552 FD 200-19 CI SP1538
2B8-553 2B8-554 FD 200-22 CI SP1541
2B9-200 2B9-201 FD 200-25 CI SP2782NB
2B9-204 2B9-205 FD 330-22 CI SP1556
2B9-216 2B9-250 FD 330-30 CI SP1557
2B9-251 2B9-253 FD 530-22 CI SP1408
2B12-309 2B12-218 FD 530-35 CI SP2342
2B12-425 2B12-429 FD 960-22 CI
2B12-437 2B12-416 FD 1330-25 CI
2B14-352 2B14-353
2B14-354 2B14-355
2B14-362 2B14-363
2B14-452 2B15-375
2B15-376 2B15-377
2B15-378 2B19-8433
2B22-8539

Air Spring Installation

1.Before you start installing air springs, make sure you have all the necessary tools and equipment to perform the repair safely.
2.Familiarize yourself with the suspension on which you are performing the repair by reviewing the manufacturers service guide.
3.If you are in doubt about something, ask for assistance from a qualified suspension specialist, the suspension manufacturer or the air spring manufacturer; This can save you a lot of time and aggravation later in the job.

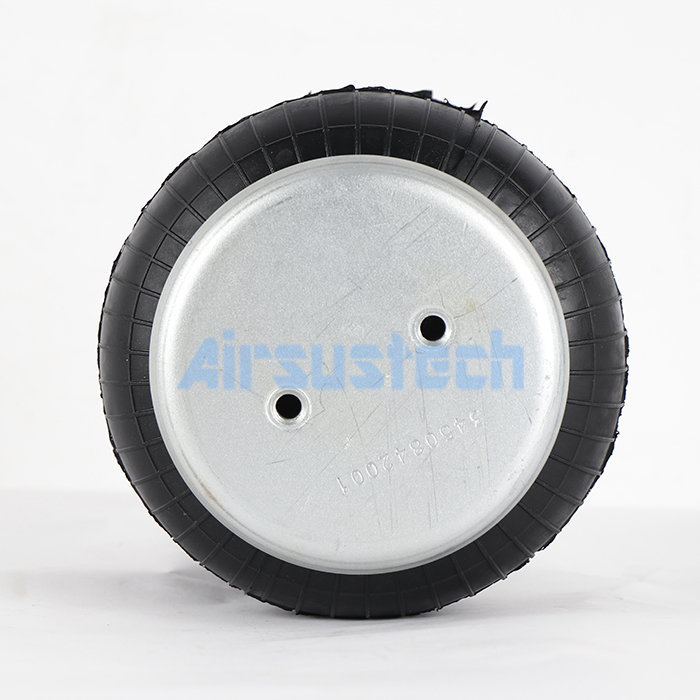

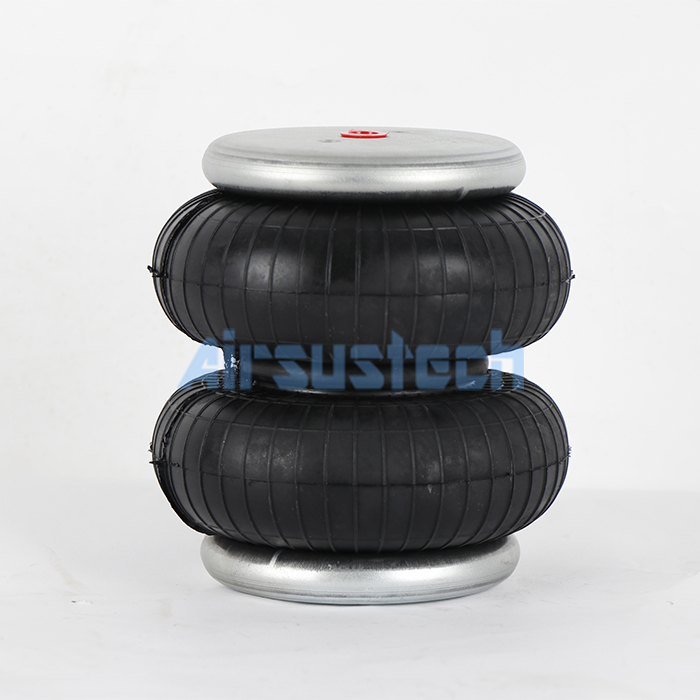

Detailed Pictures


100% Tested Air Shocks Festo EB-165-125 Pneumatic Air Spring Natural OD. 162MM100% Tested Air Shocks Festo EB-165-125 Pneumatic Air Spring Natural OD. 162MM
