Norgren M31061 Suspension Air Spring For Smooth Industrial Performance Air Bag

Brand Name : AIRSUSTECH

Model Number : 1B6×1T

Certification : ISO/TS16949:2009

Place of Origin : Guangzhou,China

MOQ : 5

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal or Others

Supply Ability : 1000PCS/Week

Delivery Time : 5-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Item NO. : 1B6×1T

OEM NO. : Firestone W01R584052

Screws Type : 4×M10

Production Process : Vulcanization

Sample : Available

Product Type : Air Bag Suspension

Bellows Type : Single Convoluted

Contact Now

Norgren M31061 Suspension Air Spring For Smooth Industrial Performance Air Bag

Product Specifications

Gas Fitting G 1/2
Top/Bottom Cover Plate Diameter 153.5 mm
Nuts/Blind Nuts Type 4 pcs×M10
Distance Air Hole Betweeen Screw 63.5 mm
Screw Center Distance 127 mm
Minimum Height 50 mm
Maximum Height 105 mm
Recommed Height 85 mm
Space Required 190 mm
Bellow MAX. Diameter 175 mm

1B6×1T Other OEM Number

Norgren Number M/31061, M31061, M 31061
Contitech Number

FS 76-7 DS, FS 76 7 DS, FS767DS, FS76-7 DS

FS767 DS, FS 76 7FDS, FS76-7DS,FS 7-67DS
Firestone Number

W01-R58-4052, W01R584052, W01 R58 4052

WO1-R58-4052, WO1R584052, WO1 R58 4052
Dunlop Pneuride Number

6" x 1, 6'×1, 6×1
Dunlop Springride Number SP1536, SP 1536
Parker Number 9109004

Contitech Air Spring We Can Offer

Single Convoluted Double Convoluted Triple Convoluted
FS 40-6 CI FD 40-10 CI FT 330-29 CI
FS 50-5 CI FD 70-13 CI FT 430-32 CI
FS 70-7 CI FD 110-15 CI FT 530-32 CI
FS 100-10 CI FD 120-17 CI FT 530-35 CI
FS 120-10 CI FD 120-20 CI FT 960-34 CI
FS 120-12 CI FD 200-19 CI FT 1330-35 CI
FS 200-10 CI FD 200-22 CI
FS 310-12 CI FD 200-25 CI
FS 330-11 CI FD 330-22 CI
FS 330-14 CI FD 330-30 CI
FS 530-11 CI FD 530-22 CI
FS 530-14 CI FD 530-35 CI
FS 960-12 CI FD 960-22 CI
FS 1330-11 CI FD 1330-25 CI

The Structure of AIRSUSTECH Air Spring


1. Is a rubber component, which is formed by vulcanization of a cord layer, an inner and outer rubber layer or a steel wire ring to form a flexible body, and realizes an elastic function by filling the compressibility of air. Commonly known as air springs, rubber airbags, airbags, etc.
2. Assembled by the rubber air spring, the base, the base (piston), the overall shape of the mat assembled into a sealed cavity.
3. According to the shape is divided into three categories of capsules, film and sleeves. The sealing structure consists of four types: pressure self-forming, flange clamping, hoop sealing and mixing.
4. The load of the air spring shock absorber is mainly carried by the cord, the curtain layer is mainly composed of 2 layers, and the special requirements of the product are composed of 4 layers of cord. The inner glue mainly serves as a sealing function, and in addition to the sealing effect of the outer rubber, it also plays a protective role.

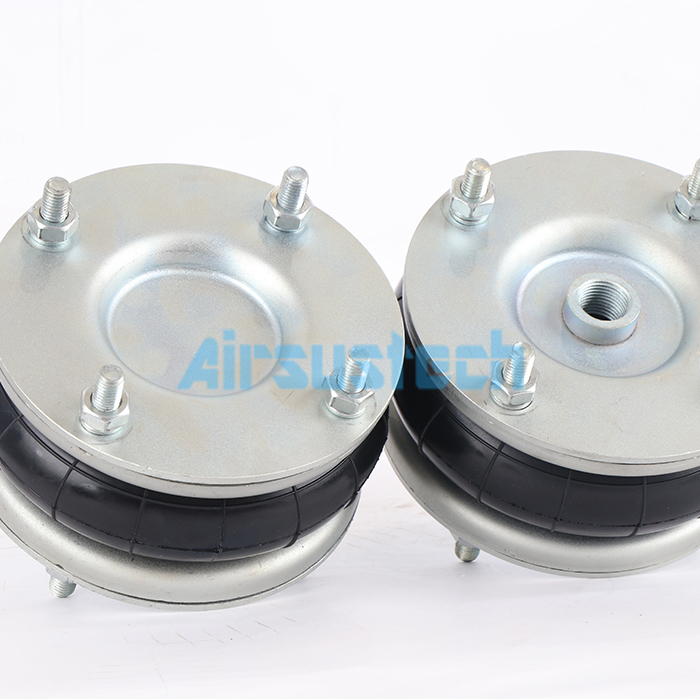

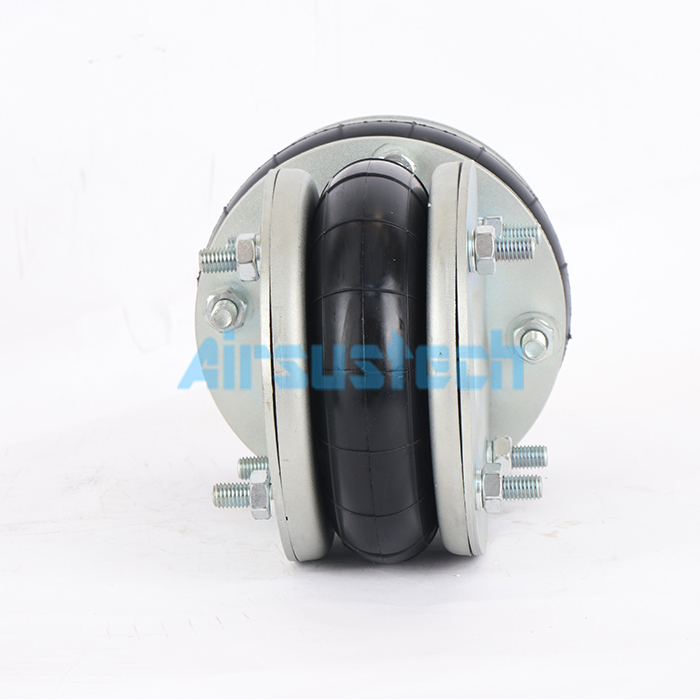

Air Spring Real Pictures

Norgren M31061 Suspension Air Spring For Smooth Industrial Performance Air BagNorgren M31061 Suspension Air Spring For Smooth Industrial Performance Air Bag
