Parker 9109400 Suspension Air Spring Dunlop SP2334 Single Convoluted Air Actuator

Brand Name : AIRSUSTECH

Model Number : 1B4.5×1P

Certification : ISO/TS16949:2009

Place of Origin : Guangzhou,China

MOQ : 5

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal or Others

Supply Ability : 1000PCS/Week

Delivery Time : 5-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Model NO. : 1B4.5×1P

Dunlop Pneuride : 4 1/2" x 1

Total Stroke : 45 MM

Operation : Gas-Filled

Quality Assurance : 12 Months

Working Temperature : -40℃+70℃

Bellows Weight : 0.75 KG

Contact Now

Parker 9109400 Suspension Air Spring Dunlop SP2334 Single Convoluted Air Actuator

Product Specifications

Bottom Plate Alignment Parallel
Bottom Plate Center To Center Diameter 93 mm
Bottom Plate Diameter 110 mm
Bottom Plate Hole Quantity 6 pcs
Bottom Plate Type Steel
Top Plate Alignment Parallel
Top Plate Center To Center Diameter 93 mm
Top Plate Diameter 110 mm
Top Plate Hole Quantity 7
Top Plate Type Steel
Bellow Maximum Diameter 125 mm
Expanded Height 125 mm
Compressed Height 45 mm
Spring Type Single Convoluted
Nut/Blind Nuts Type M6
Air Inlet 3/8 BSP

1B4.5×1P Refer Number

Parker Air Spring

9109400

Firestone Air Spring

W01-R58-4050, W01 R58 4050, W01R584050

WO1-R58-4050, WO1 R58 4050, WO1R584050

Dunlop Pneuride Air Spring

4 1/2" x 1, 4 1/2' x 1, 4 1/2 x 1

Dunlop Springride Air Spring

SP2334, SP 2334

Contitech Air Spring

FS 44-5 DI, FS44-5 DI, FS 445 DI,

FS 44 5 DI, FS44 5 DI, FS445 DI

Norgren Air Spring

PM/31041, PM31041, PM 31041

Norgren Air Rubber Bellow We Can Supply

6''×1 6''×2
8''×1 8''×2
10''×1 10''×2
10''×3 12''×1
12''×2 12''×3
14 1/2''×1 14 1/2''×2
14 1/2''×3 16''×2
16''×3 21''×2
26''×2

Product Applications

Rubber actuators, compared with traditional products (rigid actuators, spring...) offer numerous advantages such as

  • Flexibility (no angle or alignment problem)
  • Compactness
  • Power / price ratio
  • No maintenance or lubrication required
  • Durability
  • Reliability
  • Resistance to aggressive or hot conditions

AIRSUSTECH rubber pneumatic tire is an indispensable accessory for self-powered type. Its main function is to reduce the working pressure of the pneumatic valve and stabilize it at a value, so that the door can obtain a stable pneumatic valve output power for adjustment and operation.

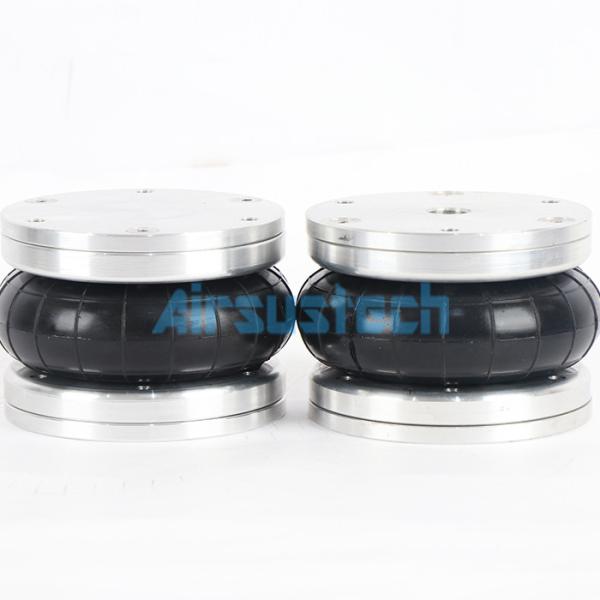

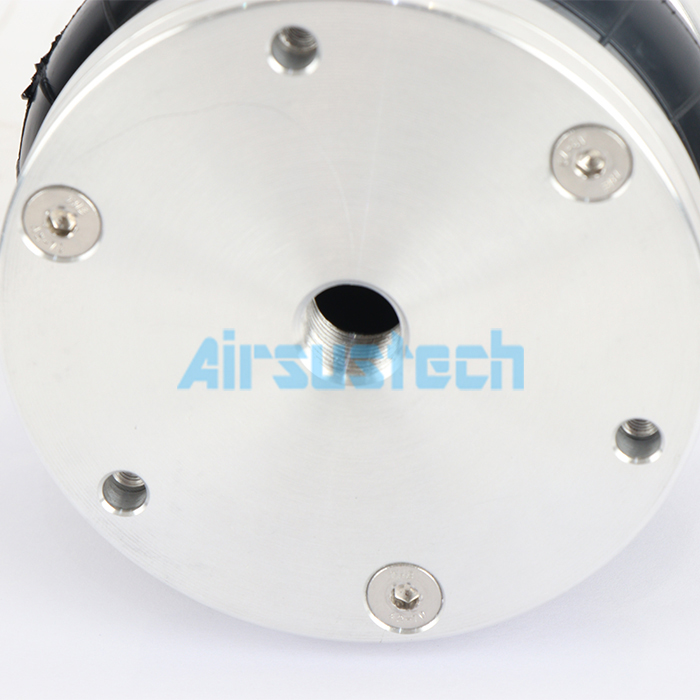

1B4.5×1P Air Spring Detailed Pictures

Parker 9109400 Suspension Air Spring Dunlop SP2334 Single Convoluted Air ActuatorParker 9109400 Suspension Air Spring Dunlop SP2334 Single Convoluted Air Actuator
