Parker 9109011 Suspension Air Springs 1/2'' BSP Air Hole Flange Pneumatic Bellow
Product Introduction
AIRSUSTECH air actuators are exceptionally robust, meticulously designed, and economically efficient, making them ideal for diverse applications in motion control and vibration damping. Built with reliable designs, fabric-reinforced Neoprene or Natural Rubber diaphragms, and corrosion-resistant end connectors, these air actuators ensure unparalleled durability and performance. Our product range includes various configurations to suit your specific requirements, such as Single, Double, and Triple Convoluted Bellows, Rolling Lobe, and Sleeve models, available in multiple sizes and end connector styles tailored for seamless integration.
Product Details
| Bottom Plate Alignment | Parallel |
| Bottom Plate Center To Center Diameter | 158 mm |
| Bottom Plate Diameter | 184 mm |
| Bottom Plate Hole Quantity | 4 |
| Bottom Plate Type | Steel |
| Top Plate Alignment | Parallel |
| Top Plate Center To Center Diameter | 158 mm |
| Top Plate Diameter | 184 mm |
| Top Plate Hole Quantity | 4 |
| Top Plate Type | Steel |
| Bellow Maximum Diameter | 230 mm |
| Expanded Height | 225 mm |
| Compressed Height | 72 mm |
| Spring Type | Double Convoluted |
| Air Inlet | 1/2 BSP |
| Nut/Blind Nuts Type | 4pcs×M10 |
Refer Number
9109011
W01-R58-4055, W01R584055, W01 R58 4055
WO1-R58-4055, WO1R584055, WO1 R58 4055
8''×2, 8'×2, 8×2
SP1490, SP 1490
FD 138-18 DS, FD138-18 DS, FD13818 DS
FD138 18 DS, FD 13818 DS, FD 138 18 DS
M/31082, M31082, M 31082
Contitech Air Springs
| Single Convoluted | Double Convoluted | Triple Convoluted |
| FS 40-6 CI | FD 40-10 CI | FT 330-29 CI |
| FS 50-5 CI | FD 70-13 CI | FT 430-32 CI |
| FS 70-7 CI | FD 110-15 CI | FT 530-32 CI |
| FS 100-10 CI | FD 120-17 CI | FT 530-35 CI |
| FS 120-10 CI | FD 120-20 CI | FT 960-34 CI |
| FS 120-12 CI | FD 200-19 CI | FT 1330-35 CI |
| FS 200-10 CI | FD 200-22 CI | |
| FS 310-12 CI | FD 200-25 CI | |
| FS 330-11 CI | FD 330-22 CI | |
| FS 330-14 CI | FD 330-30 CI | |
| FS 530-11 CI | FD 530-22 CI | |
| FS 530-14 CI | FD 530-35 CI | |
| FS 960-12 CI | FD 960-22 CI | |
| FS 1330-11 CI | FD 1330-25 CI | |

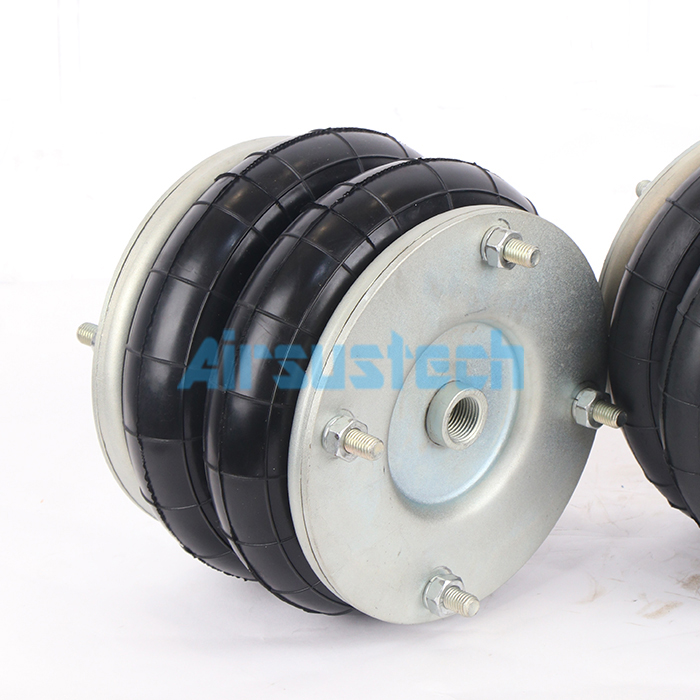

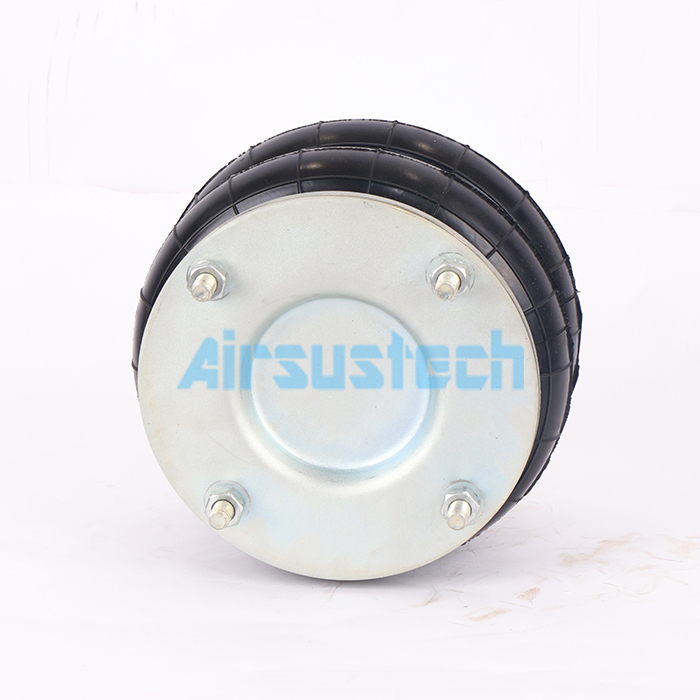

Real Images
