Product Specification
| Bottom Plate Alignment | Parallel |
| Bottom Plate Center To Center Diameter | 156 mm |
| Bottom Plate Diameter | 184 mm |
| Bottom Plate Hole Quantity | 5 |
| Bottom Plate Type | Steel |
| Top Plate Alignment | Parallel |
| Top Plate Center To Center Diameter | 156 mm |
| Top Plate Diameter | 184 mm |
| Top Plate Hole Quantity | 4 |
| Top Plate Type | Steel |
| Bellow Natural Diameter | 203 mm |
| Compressed Height | 115 mm |
| Spring Type | Triple Convoluted |
| Nut/Blind Nuts Type | 4×M10 |
| Air Inlet | 1/2 BSP |
3B8×3T Refer Number
| Firestone W01-R58-4056, W01 R58 4056, W01R584056 WO1-R58-4056, WO1 R58 4056, WO1R584056 |
| Dunlop Pneuride 8''×3, 8'×3, 8×3 |
| Dunlop Springride SP2863, SP 2863 |
| Contitech FT 138-26 DS, FT 138 26 DS, FT138-26 DS FT138 26 DS, FT 13826 DS, FT13826DS |
| Norgren M/31083, M 31083, M31083 |
| Parker 9109017 |
Triple Convoluted Rubber Bellow We Can Supply
| OEM NO. | Min. Height | Max. Height | Rubber Max. Dia | Top/Bottom Cover Plate Dia. | Threaded Hole Size |
| 6''×3 | 105 mm | 225 mm | 168 mm | 168 mm | M10 |
| 8''×3 | 100 mm | 350 mm | 215 mm | 184 mm | M10 |
| 10''×3 | 100 mm | 365 mm | 280 mm | 210 mm | M10 |
| 12''×3 | 100 mm | 430 mm | 330 mm | 260 mm | M10 |
Precautions To Observe
- Do not exceed stated stroke.
- Do not inflate assembly when it is unrestricted.
- Do not inflate beyond pressures stated without
- prior consultation with Dunlop.
- Respect maximum and minimum heights.
- The bellows must be securely fixed.
- Do not use without air pressure.

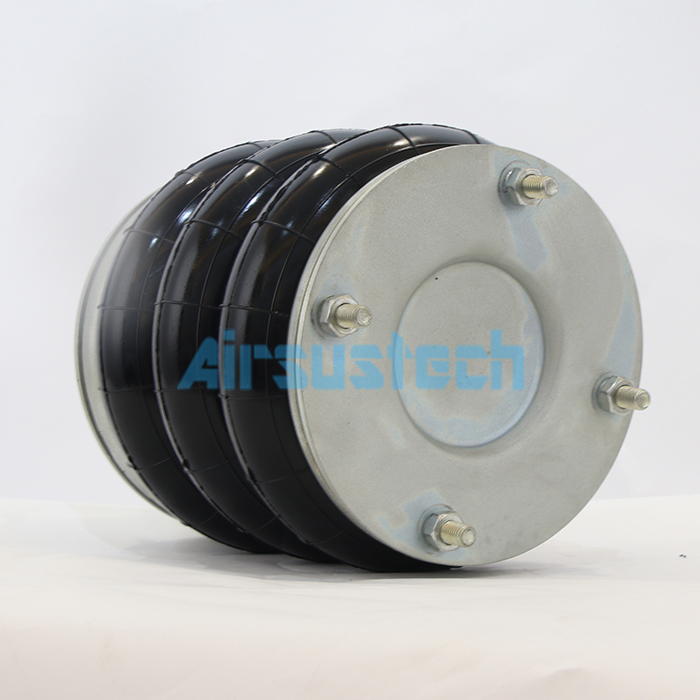

3B8×3T Real Pictures
