1B1209-D Specification
| Bottom Cover Plate |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Center To Center Diameter | 70 mm |
| Bottom Plate Diameter | 135 mm |
| Bottom Plate Hole Quantity | 2 |
| Bottom Plate Type | Steel |
| Top Cover Plate |
| Top Plate Alignment | Parallel |
| Top Plate Center To Center Diameter | 70 mm |
| Top Plate Diameter | 135 mm |
| Top Plate Hole Quantity | 3 |
| Top Plate Type | Steel |
| Rubber Bellow |
| Bellow Maximum Diameter | 215 mm |
| Expanded Height | 115 mm |
| Compressed Height | 50 mm |
| Spring Type | Single Convoluted |
| Air Hole/Air Inlet/Gas Hole/Gas Fitting |
| Air Inlet | G 1/4 |
| Nut/Blind Nuts Type | 2×M8×1.25 |
Part Interchanges
| Firestone Number W01-M58-6166, W01 M58 6166, W01M586166 WO1-M58-6166, WO1 M58 6166, WO1M586166 |
| Dunlop(FR) Number 8''x1 S08100, 8'x1 S08100, 8x1 S08100 |
| Bosch Number 822419008 |
| Weforma Number WBE 300-E2, WBE300-E2, WBE 300 E2 |
Other OEM Number
| Phoenix Number SP 1 B 07, SP1B07 |
| Firestone Number W01-M58-6165, W01 M58 6165, W01M586165 WO1-M58-6165, WO1 M58 6165, WO1M586165 |
| Contitech Number FS 120-9, FS120-9, FS 120 9, FS1209 |
| Dunlop Number 8''x1 S08101, 8'x1 S08101, 8x1 S08101 |
| Bosch Number 822419003 |
| Festo Number EB-215-80, EB 215 80, EB21580 |
| Norgren Number PM/31081(8x1), PM31081(8x1), PM 31081(8x1) |
| Weforma Number WBE 300-E1, WBE300-E1, WBE 300 E1 |
| Airtech Number 140293 |
| Airtech Number 111003, 1B-190FB, 1B 190FB, 1B190FB |
| Megatech Number 1S120-9 3/4 M8 |
Support and Services
- The Suspension Air Springs product technical support and services include:
- Expert troubleshooting assistance to diagnose and resolve technical issues
- Guidance on proper installation and maintenance procedures
- Product documentation, including user manuals and technical specifications
- Product training and education for customers and service technicians
- Warranty and repair services, including replacement parts and exchange programs
- Customer support for urgent technical issues or service needs

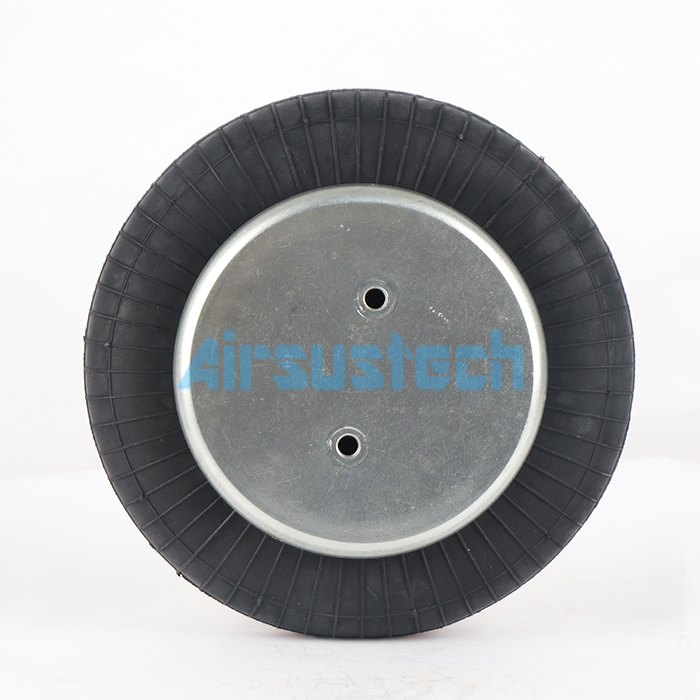

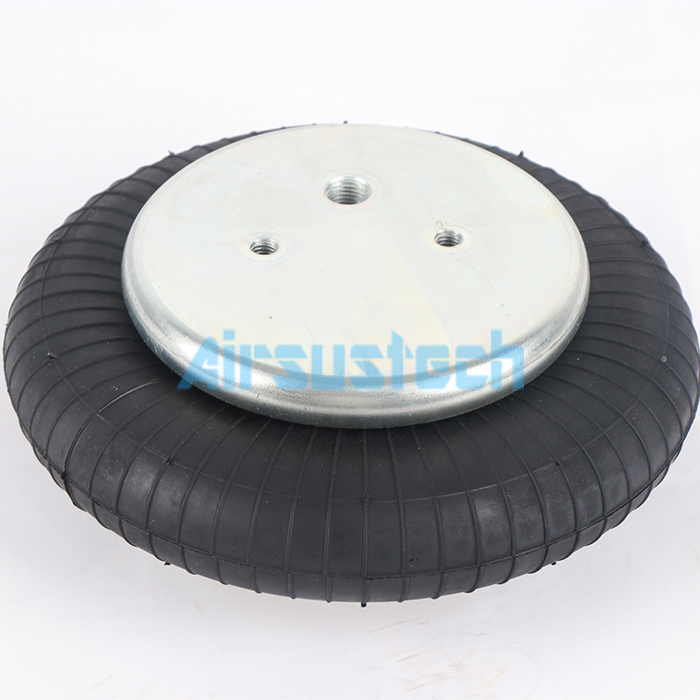

Detailed Pictures of 1B1209-D
Company Profile
Guangzhou Guomat air spring Co.,Ltd. is located in China's first open ports -- Guangzhou, from the Guangzhou Baiyun International Airport only fifteen minutes by car. Our factory has an area of about 20,000 square meter sand is modernly buil twith advanced rubber air spring manufacturing equipment. Is currently China's largest production base of airspring.
Our products are mainly used in commercial vehicles,track vehicles,industrial machinery equipment base. The main products are: rubber air spring, passenger car truck airbag, airbag, paper making machinery industry with the air spring, large washing machine, automotive rubber air spring, now has hundreds of models and styles ,but also according to customer requirements or customer's existing product specifications to design and production, welcome new and old customers call advisory.
Our company adopts the most advanced domestic air spring dedicated processing equipment and the introduction of foreign production technology of air spring Combined with our unique production process, in accordance with international standardsofproduction,to create a world-class products.
