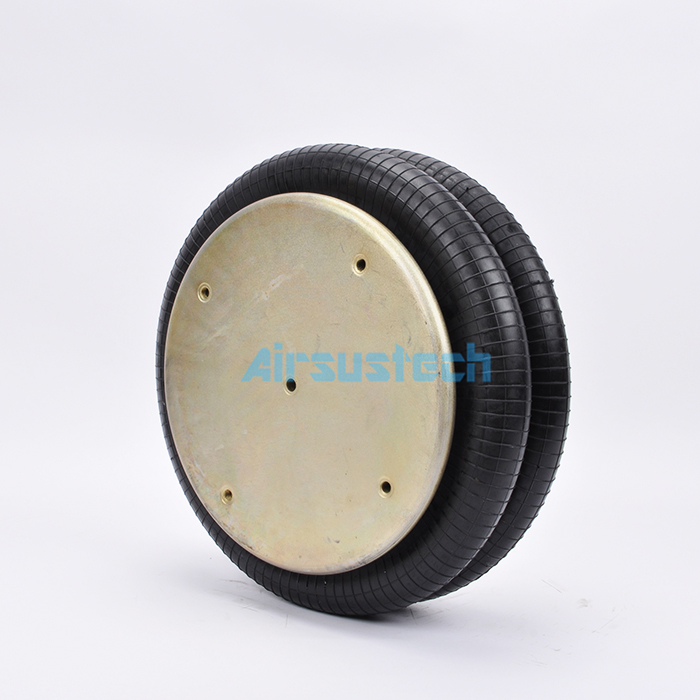

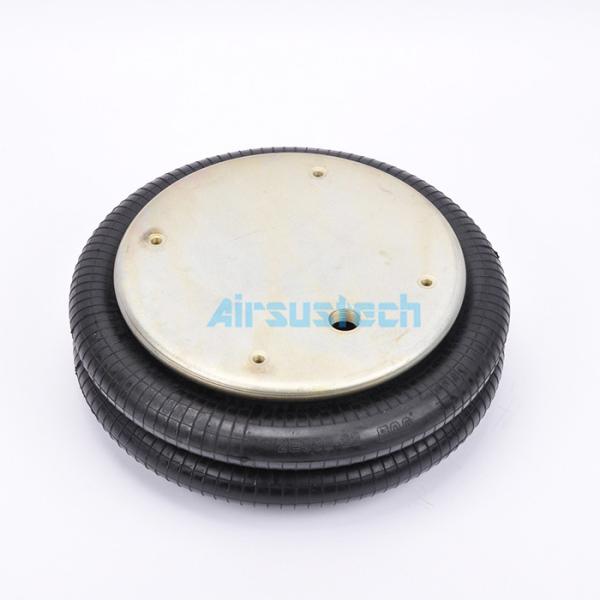

W01-358-6800 W013586800 Suspension Air Springs Goodyear 2B14-362 Double Convoluted Air Springs
Basic Information
Product model: 2B6800
Product name: Air spring, air bag, air springs, air bags, air shocks, air suspension, air suspension springs
Sample: Available
Condition: 100% New
HS Code: 8708809000
Cross Reference
Firestone Style 21-2
Firestone : W01-358-6800; W01 358 6800; W013586800; WO1-358-6800; WO1 358 6800; WO13586800
Gododyear: 2B14-362; 2B14 362; 2B14362
Contitech / Continental : FD 530-30 518, FD 530-30 CI 1/4 NPT OS, FD530-30CI1/4NPTOS
2B14-362, 354-6800, AB6800, AS-0034, AS0034, AS6800
| Blind nuts, 1/4 NPT | W01-358-6800 |
| Blind nuts, 1/4 NPT, rubber bumper | W01-358-6801 |
| Blind nuts, 3/4 NPT | W01-358-9529 |
| Countersunk steel bead rings, 1 7/8 bolts, nuts, washers | W01-358-9531 |
Specifications and Technical Parameters
21D2 Style AirSpring, Type 2 Bead Plate, (4) 3/8-16 Blind Nuts On 6.25" Centers, 1/4" NPT Offset Port
Top plate blind nuts: 4pcs× 3/8-16UNC
Bottom plate blind nuts:4pcs× 3/8-16UNC
Screw center distance: 6.25''
Cover plate diameter: 11.31''
Rubber bellow diameter at 100PSIG: 16.0''
Air Fittiings； 1/4NPT, Offset
Girdle hoop/Belt loop: 1pcs
Bumper: NO/ Without
Other models
Rubber Bellow Only 268 (25) W01-358-0319 FD 70-13 S VP 60513
Crimped, 1/4 BSP, Blind nuts 268 (25) W01-M58-6160 FD 70-13 CI G 1/4 2682015000
Crimped, 1/4 NPT, Blind nuts 268 (25) W01-358-7025 FD 70-13 CI 1/4 NPT 65532
Crimped, 3/4 NPT Blind nuts 268 (25) W01-358-7047
Socket Head Bead Rings 268 (25) W01-358-0030
Threaded Bead Rings 268 (25) W01-358-0030 FD 70-13 RI T23 B 202665
Rubber Bellow Only 267-1.5 (255-1.5) W01-358-0048
Crimped, 1/4 BSP, Blind nuts 267-1.5 (255-1.5) W01-M58-6105
Crimped, 1/4 NPT, Blind nuts 267-1.5 (255-1.5) W01-358-6955
Crimped, 3/4 NPT, Blind nuts 267-1.5 (255-1.5) W01-358-6956
Socket Head Bead Rings 267-1.5 (255-1.5) W01-358-6833
Crimped, 1/4 BSP, Blind nuts 224C W21-760-0335
Rubber Bellow Only 26 W01-358-0142 FD 120-17 S VP 60221
Crimped, 1/4 BSP, Blind nuts 26 W01-M58-6353 FD 120-17 CI G 1/4 61361
Crimped, 3/4 BSP, Blind nuts 26 W01-M58-6387 FD 120-17 CI G 3/4 2682030000
Crimped, 1/4 NPT, Blind nuts 26 W01-358-7325
Crimped, 3/4 NPT, Blind nuts 26 W01-358-7327 FD 120-17 CI 3/4 NPT 75967
Countersunk Bead Rings 26 W01-M58-6988 T26 84181
Threaded Bead Rings FD 120-17 RI
Rubber Bellow Only 20-2 W01-358-0305 FD 200-22 S VP 71983
Crimped, 1/4 BSP, Blind nuts 20-2 W01-M58-6183 FD 200-22 CI G 1/4 61363
Crimped, 3/4 BSP, Blind nuts 20-2 W01-M58-6194 FD 200-22 CI G 3/4 60608
Crimped, 1/4 NPT, Blind nuts 20-2 W01-358-6947 FD 200-22 CI 1/4 NPT 64267
Crimped, 3/4 NPT, Blind nuts 20-2 W01-358-6952 FD 200-22 CI 3/4 NPT 75258
Countersunk Bead Rings 20-2 W01-M58-6880 T20 86600
Threaded Bead Rings FD 200-22 RI
