W01R584059 Triple Convolutions Firestone Air Bags 10X3 Air Spring Bellows For Industrial Applications
Product Description:
The air spring is offered by AIRSUSTECH with Part Number 2B10X2T. It has good quality and also one year warranty. It works cross for different numbers in OEM symbol such as M/31103, M31103, FT210-32 DS, FT210-32DS, W01-R58-4059, W01 R58 4059, W01R584059, WO1-R58-4059, and so on.
There are some other OEM Part Numbers, for example, SP 1539, SP1539, 10X3, 10x3, 10''X3, 10''x3, 9109031, 09-909-031.
Features:
- Product Name: Firestone Air Bags
- Warranty: 1 Year
- Lobes: 3 Lobes
- ContiTech OEM Part NO.: FT 210-32 DS
- Air Pressure: 0.2 MPA-0.8 MPA
- Norgen OEM Part NO.: M/31103
- Spring Type: Flange Connection Air Spring
- Quality: High-Quality
Technical Parameters:

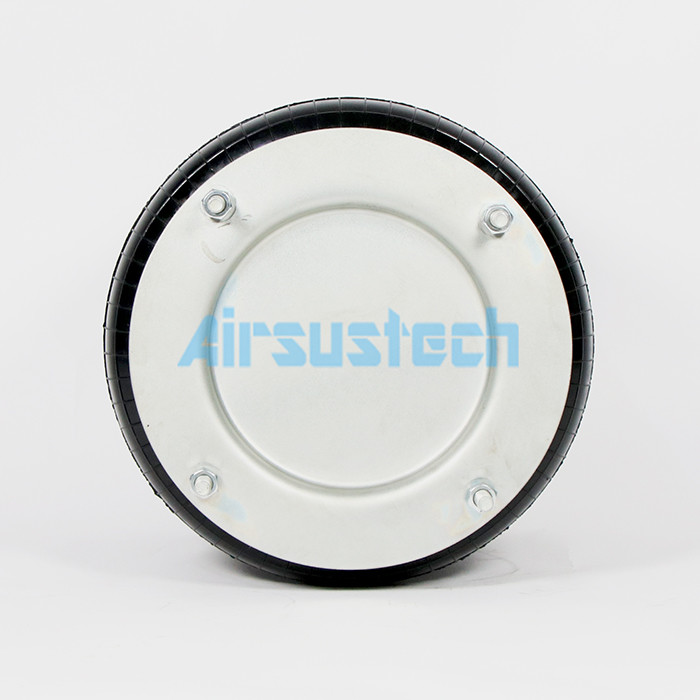

The number of bellows is 3-fold and triple convoluted. Its top plate screw teeth are 4xM10, with a diameter (width) of 181mm, and the bottom cover plate has the same. The air inlet/air connection is of G1/2, 1/2" type. The top plate and bottom cover plate diameter (width) are both 210mm, with its material being steel. Its maximum diameter at 7 bar is80mm, and stroke varies from 100mm to 430mm, requiring an installation space of 300mm. There is no bumper block, but are two belt loops. The OEM NO. listed of GRANNING, WEWELER, SAMRO, FIRESTONE, DUNLOP, CONTITECH, NORGREN and WEFORMA can be found below respectively.
- GRANNING: 15809
- WEWELER: USN 510016D
- SAMRO: H250-0010
- FIRESTONE: W01-R58-4059
- DUNLOP: SP 1539 (10"x 3)
- DUNLOP: SP 1015 (10"x 3)
- CONTITECH: FT 210-32 1/2 M10
- NORGREN: M/31103 (10"x 3)
- WEFORMA: WBD-G 450-25-710
Other Similar Models:
| Model | 10X1 | 10X2 |
| Continental Contitech | FS210-10 DS | FD210-22 DS |
| Continental Contitech | 67404 | 67403 |
| Firestone | W01-R58-4057 | W01-R58-4058 |
| Firestone | 10''x1 | 10''x2 |
| Goodyear | 1B10-2350 | 2B10-2350 |
| Goodyear | 578-91-3-2350 | 578-92-3-2350 |
| Dunlop | SP2523 | SP1538 |
| Dunlop | A111270007 | PNP305450112 |
| Norgren | M/31101 | M/31102 |
| Parker | 9109024 | 9109021 |
| YS-AIR | YS-252-1V | YS-252-2V |
