Double Convoluted Firestone WO1-358-6955 Oria M-70-E Rubber Industrial Air Springs For Camper Van
Cross Reference
Brand | Model number |
Firestone style | 255-1.5; 267-1.5 |
Firesrtone assembly number | W01-358-6955 / W01 358 6955 / W013586955 / WO1-358-6955 / WO1 358 6955 / WO13586955 |
ORIA | M-70-E / M 70 E / M70E |
Specifications and Technical Parameters
Top/ Bottom plate blind nuts | 2pcs× 3/8-16 |
Screw center distance | 1.75'' |
Air fittings/Air inlet/Air hole | 1/4'' NPT Centered |
Top/Bottom cover plate diameter | 4.50'' |
Rubber bumper | Without |
Girdle ring | 1 pieces |
Convoluted | Double |
Material | Rubber and Steel |
Condition | 100% New |
HS Code | 8708809000 |
Application | Camper van Or Others |
Other model replacement we could offer
Rubber Bellow Only
ORIA M-70-E
Firestone 267-1.5 (255-1.5) W01-358-0048
Crimped, 1/4 BSP, Blind nuts
ORIA M-70-E
Firestone 267-1.5 (255-1.5) W01-M58-6105
Crimped, 1/4 NPT, Blind nuts
ORIA M-70-E
Firestone 267-1.5 (255-1.5) W01-358-6955
Crimped, 3/4 NPT, Blind nuts
ORIA M-70-E
Firestone 267-1.5 (255-1.5) W01-358-6956
Socket Head Bead Rings
ORIA M-70-E
Firestone267-1.5 (255-1.5) W01-358-6833
Convoluted air spring applications
Air springs, also known as air bags or pneumatic cylinders, have a wide range of applications in different fields. Air springs are used in a variety of applications, ranging from vehicles to industrial machinery. They provide a means of suspended support that is resistant to vibrations and shock.
Air springs can be used in camper vans to provide a smoother ride and better load-carrying capacity. They can also help level out the vehicle when it is parked on uneven ground. Some camper vans may come with air springs installed, while others may require them to be added as an aftermarket upgrade. In some cases, air springs may be used in conjunction with other suspension upgrades, such as sway bars or shocks, to further improve the overall performance of the vehicle.
Except from camper van, coonvoluted air spring also can be used in industrial vibration isolation. It can be to isolate industrial equipment from vibrations, shocks, and noise. They are used in heavy machinery, presses, rubber and plastic processing machinery, conveyors, vibratory feeders, and power generation equipment. Also, air springs can be used in the suspension systems of construction vehicles, such as excavators, bulldozers, and cranes. They improve ride comfort, stability, and load-carrying capacity.

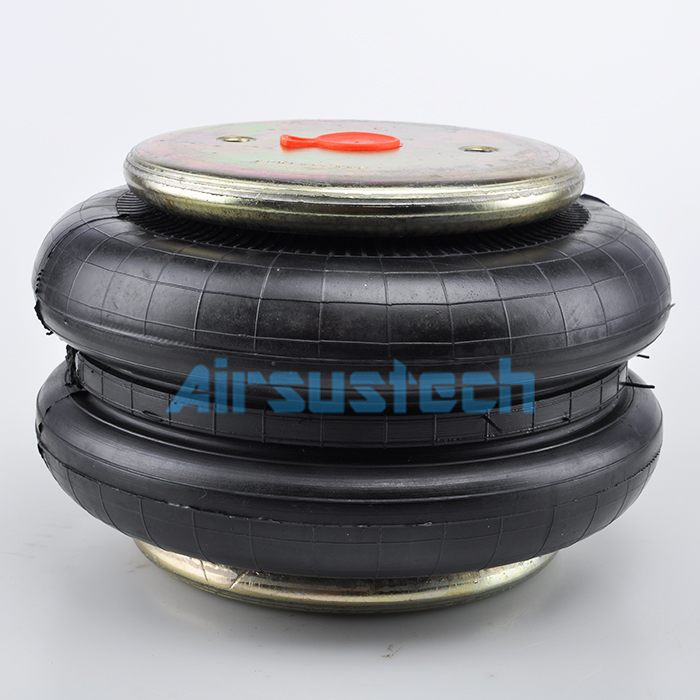

The convoluted air spring pictures
