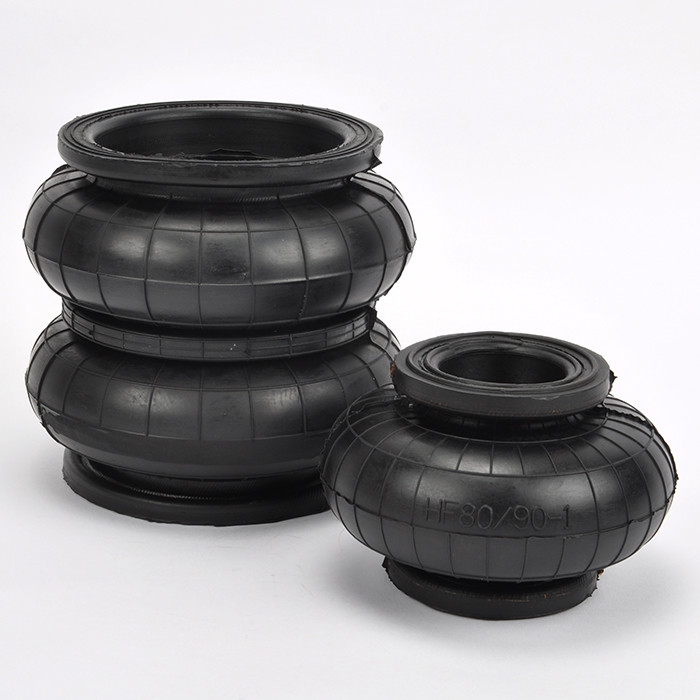

SP253 Rubber Air Bags W01-R58-4045 Convoluted 8X2 Air Spring Dunlop

Name: SP253 Rubber Air Bags W01R584045 Convoluted 8X2 Air Spring Dunlop
Brand: AIRSUSTECH
Price: 1 USD

SP253 Rubber Air Bags W01-R58-4045 Convoluted 8X2 Air Spring Dunlop Manufactures

Brand Name : AIRSUSTECH

Model Number : 8X2

Certification : ISO/TS16949:2009

Place of Origin : Guangzhou, China

MOQ : 3 pieces

Payment Terms : T/T, Western Union,Paypal or Others

Supply Ability : 1000pcs/week

Delivery Time : 3-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Model NO. : W01-R58-4045

N.W. : 1,16 KG

Warranty : One Year

Pressure Ability : 0.2-0.8 M PA

Air Inlet : G1/2

Color : Black

Top Plate Diameter (Width) : 135 mm

Bottom Plate Diameter (Width) : 135 mm

Stroke Rubber Bellows : 75~230 mm

Bumper Block : Without

Screw (Nut) : M8

Trademark : Norgren

Transport Package : Cartons

Specification : 24*24*24 cm

Origin : China

HS Code : 8708809000

Port : Huangpu, China

Function : Reduce Vibration

Material : Rubber and Aluminum

Usage : Industrial

Load Type : Compression

Production Process : Vulcanization

Shape : Convoluted

Contact Now

8X2 Rubber Air Spring DUNLOP SP 253 Double Convolutions Actuator W01-R58-4045

The air spring shock absorber AIRSUSTECH 8X2 refer to SP 253 Dunlop can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber AIRSUSTECH 8X2 refer to SP 253 Dunlop to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 8X2 refer to SP 253 Dunlop must be used to absorb the force

• Before disassembling the air spring shock absorber AIRSUSTECH 8X2 refer to SP 253 Dunlop , the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber AIRSUSTECH 8X2 refer to SP 253 Dunlop shall not be in contact with other parts

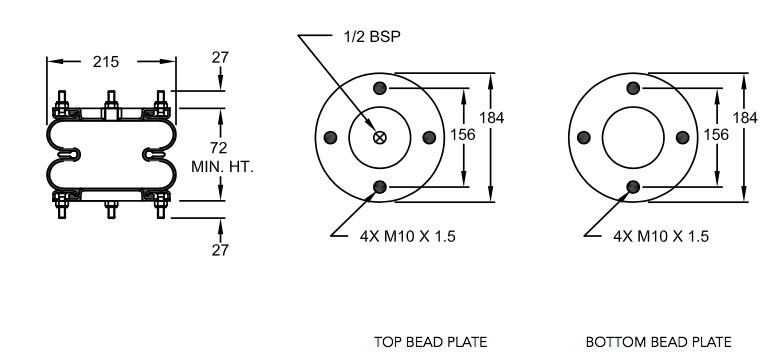

Size of 8X2 Rubber Air Spring DUNLOP SP 253:

Bell-shaped rubber bellows rubber bellows
Maximum diameter: 215 mm
Natural diameter rubber bellows length: 203 mm
Working stroke: minimum 72 mm to maximum 220 mm
Maximum height: 220 mm
Minimum height: 72 mm
Stroke height: 148mm

Type	Order No.
Rubber bellows only	66501
with dismountable plates, G1/2 air inlet	66505

Min. pressure 0 bar
Return force to min height ≤ 300 N
Overall weight 1,16 KG

Vibration isolation - dynamic characteristic values Design height H: recommended 200mm, minimum 180mm
Pressure p [bar]	3	4	5	6	7	8	Vol. V [l]
Force (Load) [kN]	3.9	5.3	6.7	8.2	9.7	11.3
Spring rate [N/mm]	76	97	118.5	140	161	181.5	4.1
Natural frequency [Hz]	2.2	2.2	2.1	2.1	2.1	2.0

Pneumatic application - static characteristic values Force F [kN]
Pressure p [bar]		3	4	5	6	7	8	Vol. V [l]
Height H [mm]	220	2.9	4.03	5.16	6.41	7.65	8.98	4.3
	200	3.86	5.27	6.68	8.21	9.73	11.3	4.1
	150	5.9	8	10.1	12.4	14.7	16.9	3.2
	100	8.2	10.9	13.7	16.6	19.4	22.4	2

Other Norgen air springs models:

Model	Nominal Ã˜ (inch) x convolutions	Maximum stroke (mm)	Air Port size
PM/31021	2 3/4" x 1	20	G1/4
PM/31022	2 3/4" x 2	45	G1/4
PM/31023	2 3/4" x 3	65	G1/4
PM/31041	4 1/2" x 1	140	G3/8
PM/31042	4 1/2" x 2	280	G3/8
PM/31061	6" x 1	155	G1/2
PM/31062	6" x 2	155	G1/2
PM/31081	8" x 1	95	G3/4
PM/31082	8" x 2	185	G3/4
PM/31091	9 1/4" x 1	105	G3/4
PM/31092	9 1/4" x 1	230	G3/4
PM/31121	12" x 1	105	G3/4
PM/31122	12" x 2	215	G3/4
PM/31123	12" x 3	315	G3/4
