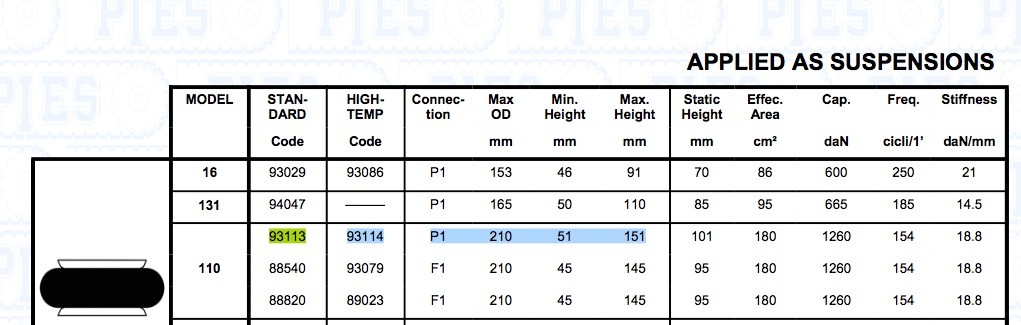

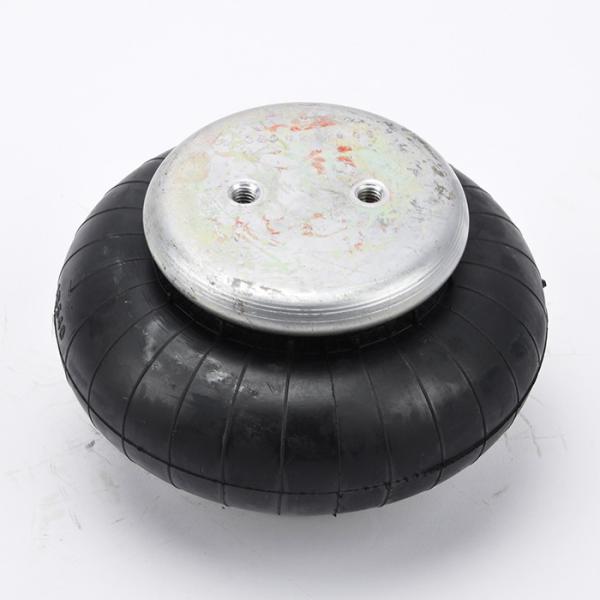

Air Spring Model 110 Standard Code 93113 Max OD 210 MM Connection P1
AIRSUSTECH 1B210110 Cross OEM Original Equipment Manufacturer:
AIRSUSTECH Part Number:1B210110
Air Spring: MODEL 110
Air Spring:Standard Code 93113
AIRSUSTECH Part Number:1B210110 Specifications
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 44.45 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 44.45 mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPTF
Screw Center Distance Between Gas Hole and Nut : 22.25 mm
Cover Plate
Top Cover Plate Diameter: 114.5 mm
Bottom Cover Plate Diameter: 114.5 mm
Rubber Bellows
Rubber Bellows MAX Diameter: 210 mm
Rubber Bellows Natural Diameter : 180 mm
The Working Stroke : MIN 51 mm to MAX 151 mm
Maximum Height : 151 mm
Minimum Height :51mm
Stroke Height : 100mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :no One Pieces of Girdle Hoop
How to improve the abrasion resistance of air spring AIRSUSTECH 1B210110 refer to Air Spring Model 110 Standard Code 93113 rubber airbag?
Nowadays, the quality of China AIRSUSTECH 1B210110 refer to Air Spring Model 110 Standard Code 93113 air spring is getting better and better, with a service life of several years. China AIRSUSTECH 1B210110 refer to Air Spring Model 110 Standard Code 93113 The gap between air springs and imported air springs is getting smaller and smaller.
Proper use and maintenance are ways to extend the life of air spring AIRSUSTECH 1B210110 refer to Air Spring Model 110 Standard Code 93113. Maintenance can extend the life of air springs. This must be based on the excellent quality of air spring rubber airbags. What are the methods in the production process? The service life of the air spring can be improved. What is the abrasion resistance of the air spring rubber bladder? In addition to the most basic work in the vulcanization process, the following points need to be paid attention to: 1. The smaller the particle size of ordinary fillers, the lower the dispersibility, surface activity and structural structure, and the worse the wear resistance. The best dosage is 90-100 parts of BR, 60-70 parts of oil-extended SBR, 55 parts of 50-SBR and IR, and 45-50 parts of NR.
