W01-358-6945 Firestone Air Bags Double Convoluted Air Spring For Vibrating Screen

Firestone Air Bags W01-358-6945 Rubber Double Convoluted Air Spring For Vibrating Screen

OEM NO.

Firestone : W01-358-6945

Contitech : FD200-25 427

Goodyear : 2B9-253

Triangle : 6332/4427

Leland : Sc2125

Watson&Chalin : AS0119F

Ridewell : 1003586945C

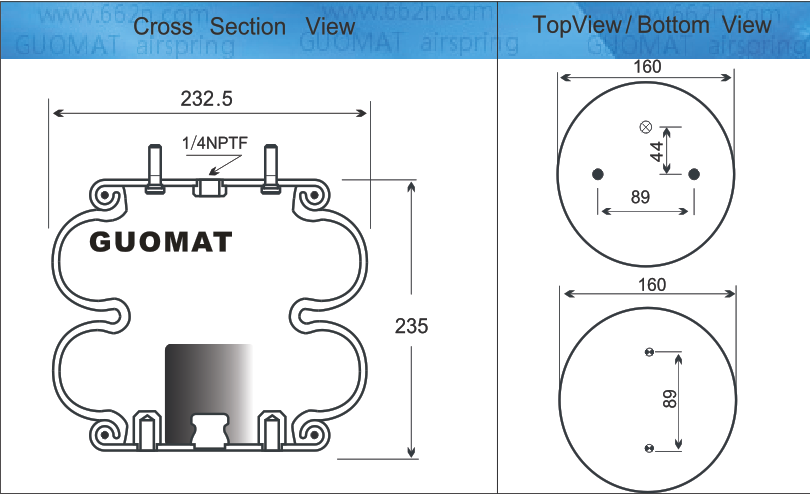

Specifications and Detailed Technical Parameters:AIRSUSTECH 2B6945

• Nut/blind nut

Top plate screw (nut) teeth: 2X1/2-13UNC
The screw center distance of the top cover plate: 89mm
Screw (nut) teeth of the bottom cover plate: 2X3/8-16UNC
The screw center distance of the bottom cover plate: 89 mm

• Air hole/air inlet/air fittings

Air hole/air inlet: 1/4NPTF

The screw center distance between the air hole and the nut: 44mm

• Cover plate

Top plate diameter: 160 mm

Diameter of the bottom cover: 160mm

• Bumper block/bumper block

With bumper block

• Belt loop/Belt loop

With belt loop: One belt loop

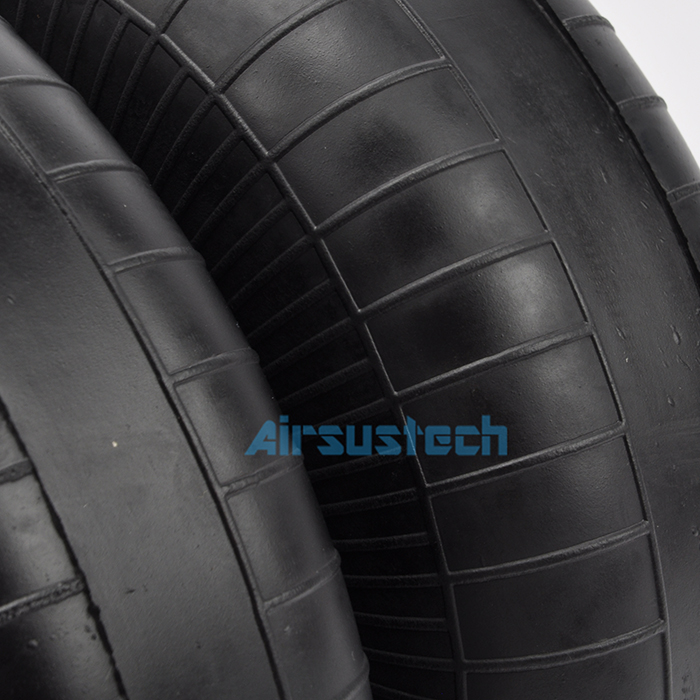

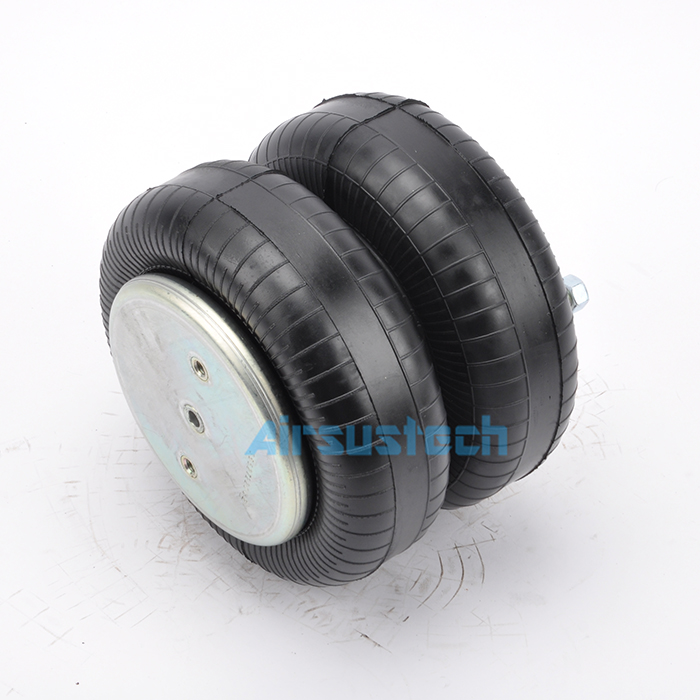

The related picture of 2B6945

The 2B6945 can replace Firestone W01-358-6945. They have same fuctions. And Guomat 2B6945 air spring advantages are as follow.

1. Excellent damping capacity Guomat air spring shock absorbers have high vibration isolation capability among all types of vibration shock absorbers. The natural frequency of the system can be as low as 1 hz. The system's natural frequency can be even lower if an additional air storage chamber is added. In order to achieve the same effect, the static deformation of traditional spiral spring shock absorbers is required to reach 220 mm.
2. Stable damping effect The unique feature of Guomat air spring shock absorbers is that the natural frequency of the system does not change significantly when the load changes. This characteristic, combined with precise height control, makes it particularly suitable for mounting Guomat air spring shock absorbers at various mounting points on equipment with uneven loads.
3. precise height control Guomat air spring shock absorbers provide precise height control by adjusting the internal air pressure. This feature eliminates fatigue and one-time setup problems common in other types of isolators.
4. Wide size range Guomat air spring shock absorbers have vibration isolation loads from 10KG to more than 10 tons per installation point.
