Yokohama S-600-5 Hydraulic Press Air Spring Penta Convoluted Rubber Bellows

Name: Yokohama S6005 Hydraulic Press Air Spring Penta Convoluted Rubber Bellows
Brand: AIRSUSTECH
Price: 1 USD

Yokohama S-600-5 Hydraulic Press Air Spring Penta Convoluted Rubber Bellows Manufactures

Brand Name : AIRSUSTECH

Model Number : F-600-5

Certification : ISO/TS16949:2009

Place of Origin : Guangzhou China

MOQ : 3Pieces

Payment Terms : T/T, Western Union, Paypal or Others

Supply Ability : 1000PCS/Week

Delivery Time : 5-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Material : Rubber and Steel

Certificate : ISO/TS16949:2009

Warranty : 12 MONTHS

Number of convolutions : Five

Packing : Neutral Box Or As Customers' Request

Type : Punch Air Springs

Cross reference : Yokohama S-600-5R

Natural outer diameter : 660mm

Sample : Available

Quality : 100% tested

Contact Now

Yokohama S-600-5 Hydraulic Press Air Spring Penta Convoluted Rubber Bellows

OEM Cross reference:

AIRSUSTECH Part No.: F-600-5

YOKOHAMA S-600-5R

YOKOHAMA S 600 5R

YOKOHAMA S-600-5

YOKOHAMA S 600 5

YOKOHAMA S600-5R

YOKOHAMA S600-5

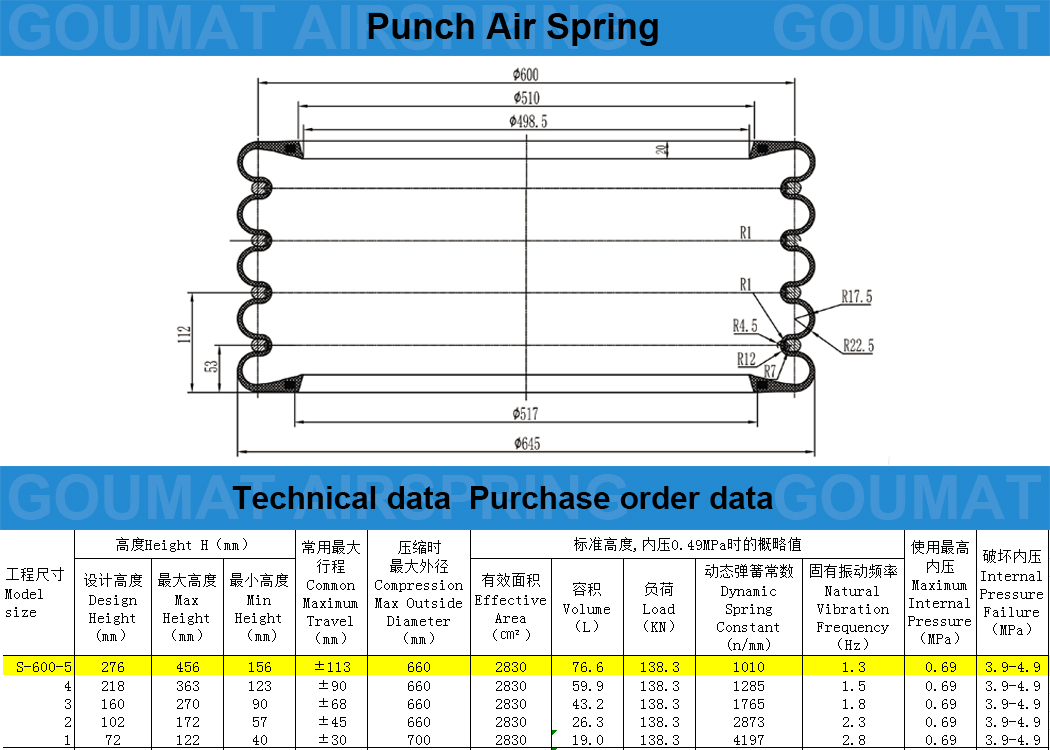

Specifications and Detailed Technical Parameters: F-600-5

Height H(mm)

Design Height: 276 mm

Max. Height: 456mm

Min Height: 156mm

Common Maximum Travel(mm): 113mm

Compression Max. Outside Diameter (mm): 660mm

Maximum Internal Pressure (MPA): 0.69

Internal Pressure Failure(MPA): 3.9-4.9

Model Size			Standard height, approximate value at 0.49MPA internal pressure
Model Size	Design Height	Max. Height	Effective Area(cm2)	Volume(L)	Load(KN)	Dynamic Spring Constant(n/mm)	Natural Vibration Frequency(Hz)
S-600-5	276	456	2830	76.6	138.3	1010	1.3
S-600-4	218	363	2830	59.9	138.3	1285	1.5
S-600-3	160	270	2830	43.2	138.3	1765	1.8
S-600-2	102	172	2830	26.3	138.3	2873	2.3
S-600-1	72	122	2830	19.0	138.3	4197	2.8

Other types:

GUOMAT NO.	Yokohama Reference No.	Hight H(mm)			Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
GUOMAT NO.	Yokohama Reference No.	Design High(mm)	Maximum High(mm)	Minimum Height(mm)	Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
F-600-1	S-600-1	72	122	40	±30	700
F-600-2	S-600-2	102	172	57	±45	660
F-600-3	S-600-3	160	270	90	±68	660
F-600-4	S-600-4	218	363	123	±90	660
F-600-5	S-600-5	276	456	156	±113	660
F-550-2	S-550-2	102	172	50	±45	610
F-550-3	S-550-3	160	270	90	±68	610
F-500-2	S-500-2	102	172	57	±45	560
F-500-3	S-500-3	160	270	90	±68	560
F-500-4	S-500-4	218	363	123	±90	560
F-500-5	S-500-5	276	456	156	±113	560
F-450-1	S-450-1	72	117	40	±30	510
F-450-2	S-450-2	102	172	57	±45	510
F-450-3	S-450-3	160	270	90	±68	510
F-450-4	S-450-4	218	363	123	±90	510
F-450-5	S-450-5	276	456	156	±113	510
F-400-2	S-400-2	102	167	57	±45	460
F-400-3	S-400-3	160	260	90	±68	460
F-400-4	S-400-4	218	348	123	±90	460
F-400-5	S-400-5	276	435	156	±113	460
F-350-1	S-350-1	72	117	40	±30	450
F-350-2	S-350-2	102	160	55	±42	410
F-350-3	S-350-3	160	250	85	±65	410
F-350-4	S-350-4	218	336	118	±85	410
F-300-1	S-300-1	72	117	40	±30	400
F-300-2	S-300-2	98	158	53	±40	360
F-300-3	S-300-3	152	242	82	±60	360
F-300-4	S-300-4	206	326	111	±80	360
F-240-4	S-240-4	206	316	111	±80	300
F-240-3	S-240-3	152	232	82	±60	300
F-240-2	S-240-2	98	148	53	±40	300
F-240-1	S-240-1	72	110	40	±30	340
F-220-4	S-220-4	206	311	111	±80	280
F-220-3	S-220-3	152	232	82	±60	280
F-220-2	S-220-2	98	148	53	±40	280
F-200-2	S-200-2	98	148	53	±35	260
F-200-3	S-200-3	152	232	82	±53	260
F-200-4	S-200-4	206	311	111	±70	260
F-160-1	S-160-1	72	102	40	±25	220
F-160-2	S-160-2	98	148	53	±35	220
F-160-3	S-160-3	152	227	82	±53	220
F-160-4	S-160-4	206	306	111	±70	220
F-120-4	S-120-4	206	306	111	±70	180
F-120-3	S-120-3	152	227	82	±53	180
F-120-2	S-120-2	98	148	53	±35	180
F-100-4	S-100-4	206	296	121	±60	160
F-90-3	S-90-3	152	222	87	±45	160
F-90-2	S-90-2	98	143	58	±30	160
F-90-1	S-90-1	76	106	46	±30	125

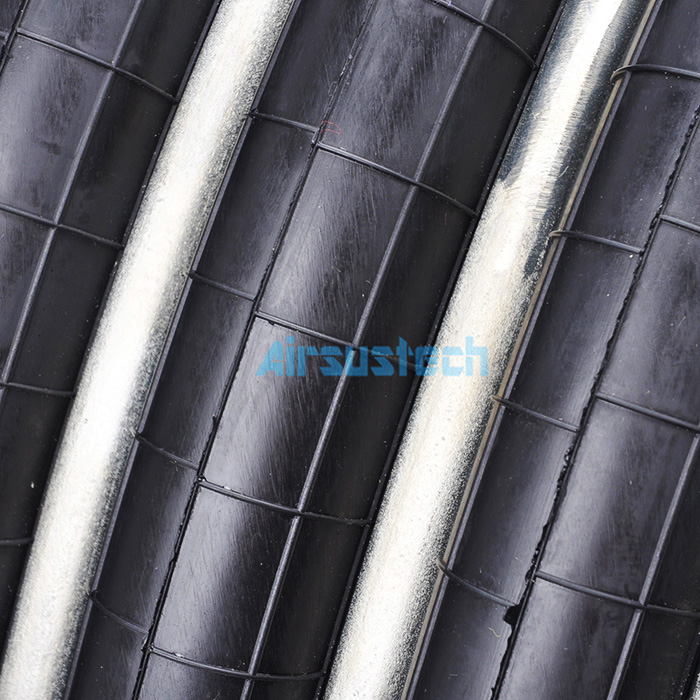

The related picture of F-600-5

Yokohama S-600-5 Hydraulic Press Air Spring Penta Convoluted Rubber Bellows
