HF80/90-1 Rubber 1 Convoluted 90mm Design Height Air Ride Spring

Name: HF80901 Rubber 1 Convoluted 90mm Design Height Air Ride Spring
Brand: AIRSUSTECH
Price: 1 USD

HF80/90-1 Rubber 1 Convoluted 90mm Design Height Air Ride Spring Manufactures

Brand Name : AIRSUSTECH

Model Number : HF80/90-1

Certification : ISO/TS16949:2009

Place of Origin : Guangzhou China

MOQ : 3Pieces

Payment Terms : T/T, Western Union, Paypal or Others

Supply Ability : 1000PCS/Week

Delivery Time : 5-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Material : Rubber + Steel

Certifications : ISO/TS16949:2009

Warranty : 12 MONTHS

Number of convolutions : One

Packing : Neutral Box Or As Customers' Request

Type : Rubber Air Spring

Sample : Available

Condition : New

Contact Now

HF80/90-1 Rubber 1 Convoluted 90mm Height Air Ride Spring

HF80/90-1 Technical parameters

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth: /

Top Cover Plate Screw (Nut): /

Bottom Cover Plate Screw (Nut) Tooth: /

Screw Center Distance of Bottom Cover Plate: /

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet: /

Cover Plate

Top Cover Plate Diameter: /

Bottom Cover Plate Diameter: /

Rubber Bellows

Design diameter D_0:80mm

Maximum outer diameter D(mm): 136mm

End outside diameter φ₀(mm):82mm

Design height: 90mm

Whole trip L(mm): 50-110mm

0.4-0.7Mpa bearing capacity (Kg): 201-352

Bumper block / Buffer block

With Bumper Block Or Without Bumper Block

Girdle Hoop / Girdle Ring

Without Girdle Hoop

The other types of HF air spring/air bellows we have

Model Size	Design diameter D₀_(mm)	Maximum outer diameter D(mm)	End outside diameter φ₀(mm)	Design height (mm)	Whole trip L(mm)	0.4-0.7Mpa bearing capacity (Kg)
HF80/142-2	80	130	92	142	72-162	201-352
HF86/60-1	86	116	80	60	36-75	232-407
HF88/110-1	88	158	100	110	80-130	243-425
HF95/70-1	95	130	65	70	45-80	287-496
HF100/96-1	100	160	112	96	50-120	314-550
HF100/166-2	100	160	112	176	74-200	314-550
HF100/138-3	100	160	112	256	98-275	314-550
HF104/66-1	104	150	88	66	34-85	340-594
HF115/77-1	115	145	118	77	55-90	146-727
HF120/132-2	120	168	136	132	72-152	452-792
HF125/112-1	125	215	150	112	40-132	491-859
HF150/140-2	150	200	132	140	76-162	707-1237
HF164/90-1	164	220	132	90	47-120	845-1478
HF170/120-1	170	260	150	120	55-145	908-1589
HF174/126-1	174	270	170	126	50-160	951-1165
HF180/156-1	180	300	181	156	120-170	1018-1782
HF180/152-2	180	235	145	152	67-182	1018-1782
HF190/170-2	188	250	128	170	84-194	1110-1943
HF190/248-3	188	250	128	248	116-282	1110-1943
HF208/90-1	208	268	178	90	50-130	1359-2378
HF216/214-2	216	296	216	214	90-260	1465-2565
HF230/116-1	230	285	172	116	75-130	1662-2908
HF230/120-1	230	320	182	124	50-140	1662-2908
HF230/140-2	230	280	200	140	70-170	1662-2908
HF240/100-1	240	305	180	100	50-140	1810-3167
HF240/165-2	240	301	210	165	75-190	1810-3167
HF250/255-2	250	350	260	255	100-305	1964-3436
HF264/90-1	264	324	237	90	50-130	2189-3832
HF290/105-1	290	360	220	105	60-125	2642-4624
HF300/255-2	300	400	310	255	100-305	2828-4948
HF310/160-1	310	430	300	160	120-170	3019-5283
HF320/203-2	320	400	261	203	90-240	3217-5629
HF334/206-2	334	410	330	206	90-250	3505-6133

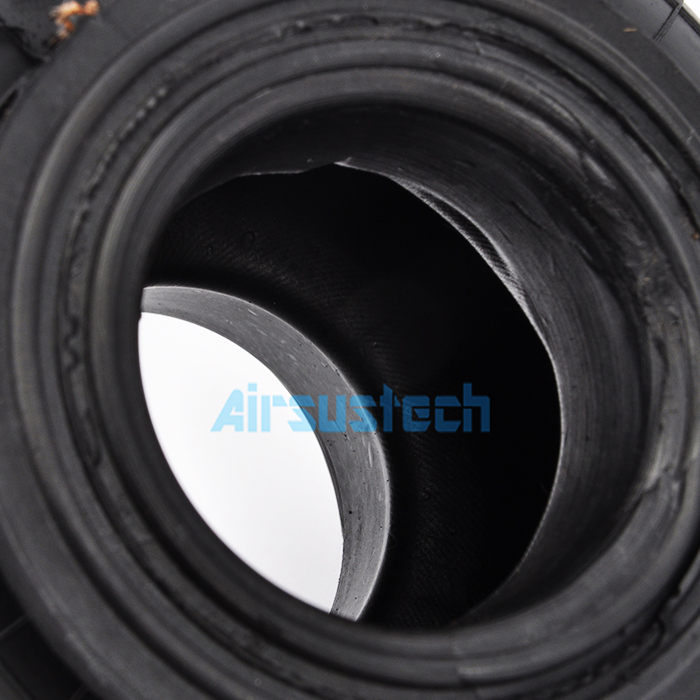

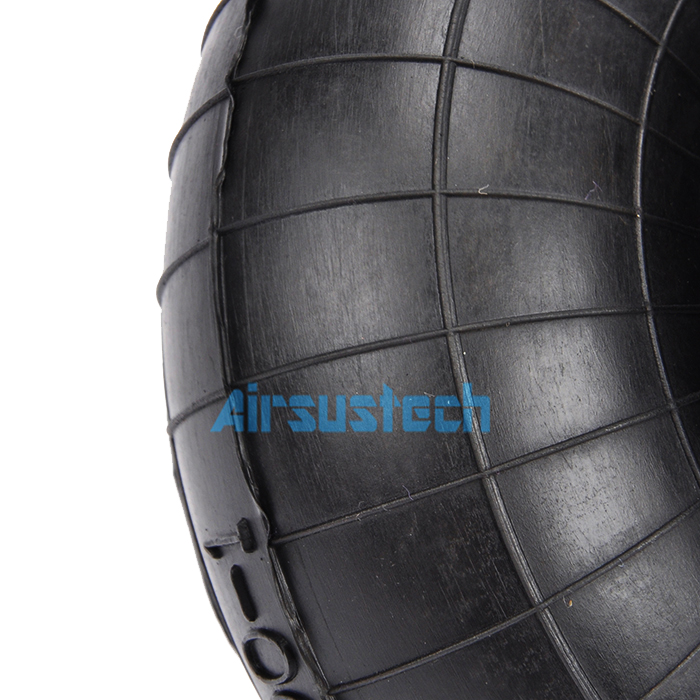

The related picture of HF80/90-1

HF80/90-1 Rubber 1 Convoluted 90mm Design Height Air Ride Spring
